Three-way, Two piece design 2 & 3 Seated Ball valve
 |
| |
Model : |
L PORT ( 2 Seated) |
BL-L-2-F-F-A1(FLANGE ENDS150#) |
|
T PORT ( 3 Seated) |
BL-T-1-F-F-A1(FLANGE ENDS150#) |
|
| |
Size : |
25-250mm |
32-100mm |
Bore : |
Regular / Full bore |
Material : |
Carbon Steel, Stainless Steel and Alloy Steel |
Seat : |
PTFE/ RPTFE/PEEK |
Ratings : |
150 Class |
Ends : |
Flanged |
|
 |
|
 Click Here for a downloadable and / or printable version of this page. |
| Design Features | Standard | Option | Applications | Exploded View-(3D)-Model | 150MM(3D)-Model |
| |
| Dimension View-25-50mm | 80-100mm | 150-200mm |
| |
| |
|
| Design Features |
Standard |
Double body Seals provides safety on joint expansions |
Design : ASME B 16.34, BS EN ISO 17292 & API 6D |
Full or Reduce Bore |
Pressure Test : API 598 / BS EN ISO 12266-1 / API 6D |
Self adjustable gland packing |
End to End : Manufactuer's std. |
Renewable Seat & Seals |
Ends Dimension. : Flange meets ANSI B 16.5 |
''O' ring style body seals for better joint sealing & resuable |
Mounting Pad : DIN 3337/ ISO 5211 |
ISO Mounting pad to suit actuator gear box and other hardware mountings |
Material Certifications.: DIN 50.049-3 1B |
Maintenance free live loaded double sealing |
Quality Systems / Certifications : ISO 9001:2008, API 6D |
High cycle stem packing system provides extra longer service life
|
Option |
Anti-Static Device |
L Port Bottom inlet to avoid intra port fluid transmission whilst in operation. |
Blowout proof Stem |
Extended stem & pad lock capabilities provide maximum safety. |
| Applications |
|
Mixing and Diverting with various flow patternsaand configurations |
|
|
| |
|
| |

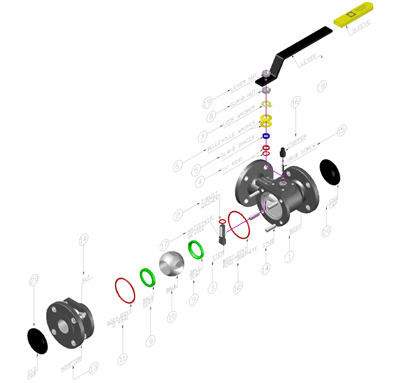

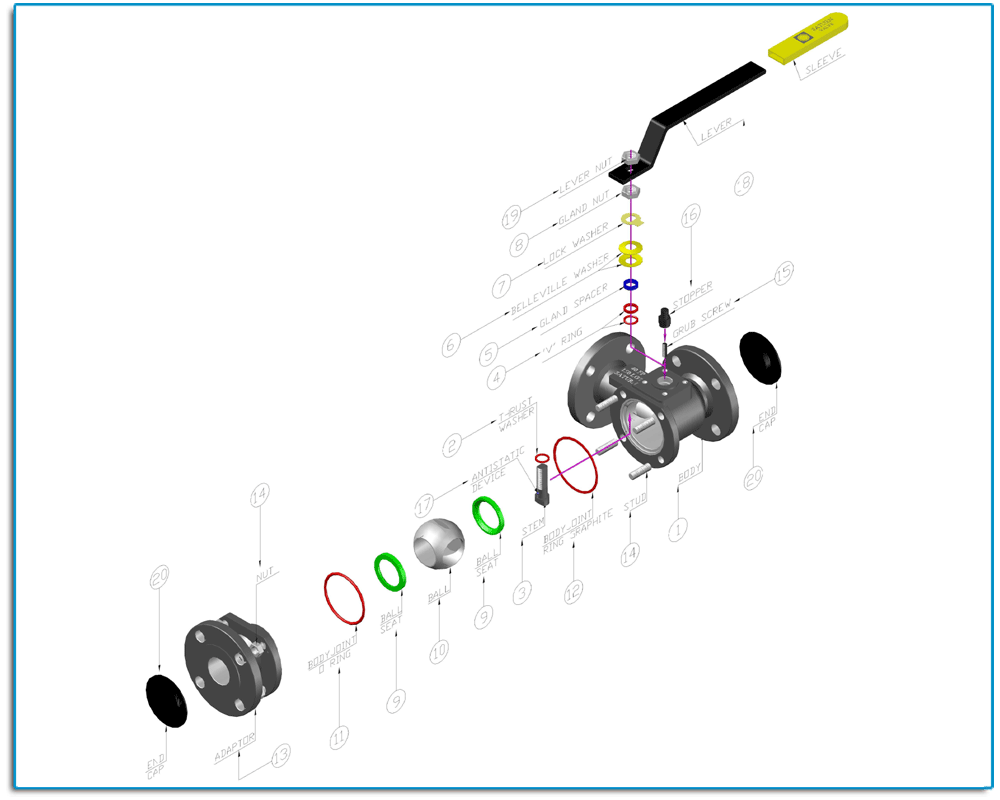

| Exploded View - (3D)-Model |
|
| |
|
|
| |
| No. |
Description |
Material |
Qty |
| 1 |
BODY |
LCB / WCB / CF8 / CF8M / CF3 / CF3M |
1 |
| 2 |
THRUST WASHER |
PTFE / GFT / CFT |
1 |
| 3 |
STEM |
AISI 304 / 304L / 316 / 316L |
1 |
| 4 |
GLAND SEAL RING |
PTFE / GET / CFT / GRAPHITE |
1 SET |
| 5 |
GLAND SPACER |
AISI 316 / 316L |
1 |
| 6 |
BELLEVILLE WASHER |
SPRING STEEL ZINC PLATED / S.S 304 |
2 |
| 7 |
LOCK WASHER |
C.S ZINC PLATED / S.S 304 |
1 |
| 8 |
GLAND NUT |
C.S ZINC PLATED / S.S 304 |
1 |
| 9 |
BALL SEAT |
PTFE / GFT / CFT / SP. R PTFE |
2 |
| 10 |
BALL |
CF8 / CF3 / CF8M / CF3 / CF3M |
1 |
| 11 |
BODY JOINT O RING |
PTFE / GFT / CFT |
1 |
| 12 |
BODY JOINT RING |
GRAPHITE |
1 |
| 13 |
ADAPTOR |
LCB / WCB / CF8 / CF8M / CF3 / CF3M |
1 |
| 14 |
STUD & NUT |
A 193 B7 / 2H / B8 A270 / B8M / 8M |
4/6 |
| 15 |
GRUB SCREW |
HIGH TENSILE |
1 |
| 16 |
STOPPER |
C.S ZINC PLATED / AISI 304 |
1 |
| 17 |
ANTISTATIC DEVICE |
AISI 316 / 316L |
2 |
| 18 |
LEVER WITH PVC SLEEVE |
C.S P.C / CF8 |
1 |
| 19 |
LEVER NUT |
C.S ZINC PLATED / AISI 304 |
1 |
| 20 |
END CAP |
RUBBER |
2 |
|
| |
|
| |

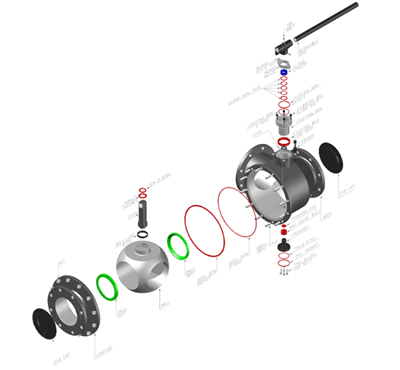

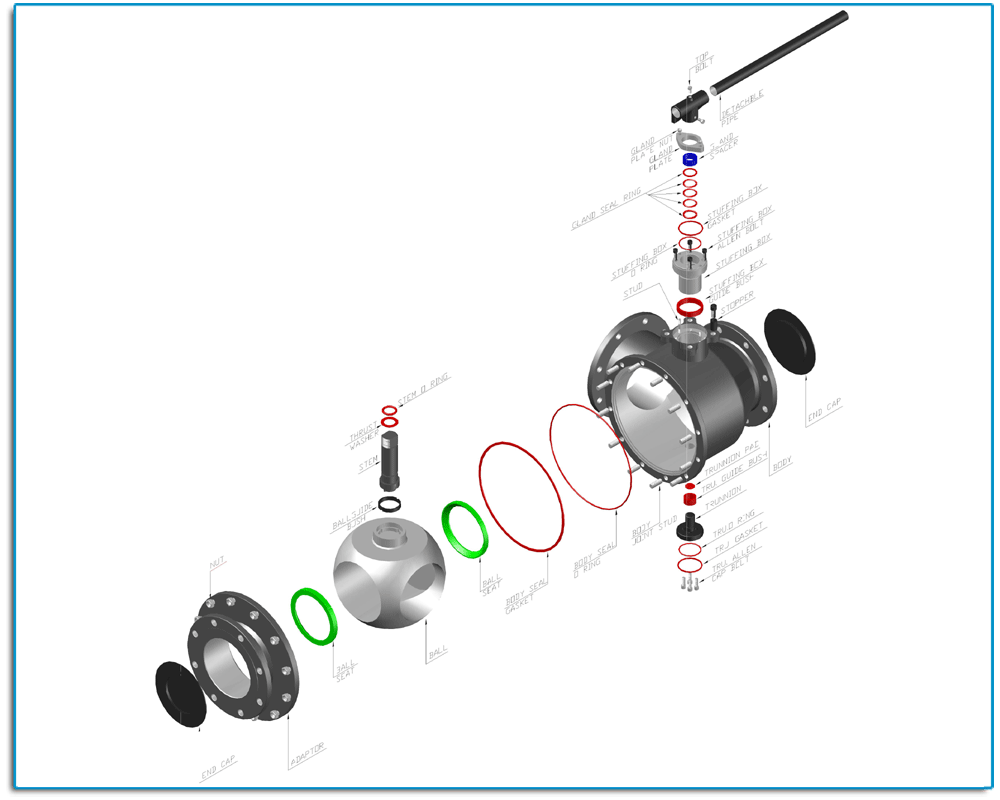

| Exploded View - 150MM(3D)-Model |
| |
 |
|
|
| |
| No. |
Description |
Material |
Qty |
| 1 |
BODY |
ASTM-A216 GR.WCB |
1 |
| 2 |
ADAPTOR |
ASTM-A216 GR.WCB |
1 |
| 3 |
STEM |
AISI 304 |
1 |
| 4 |
BALL |
ASTM A 351 CF8 |
1 |
| 5 |
BALL SEAT |
PTFE |
2 |
| 6 |
THRUST WASHER |
PTFE |
1 |
| 7 |
GLAND SEAL RING |
PTFE |
6 |
| 8 |
BODY SEAL RING |
SPW 304 WITH GRAPHITE |
1 |
| 9 |
BODY SEAL O RING |
VITON RUBBER |
1 |
| 10 |
GLAND SPACER |
AISI 316 |
1 |
| 11 |
STUFFING BOX |
ASTM- A 316 GR.WCB |
1 |
| 12 |
GLAND PLATE |
GUN METAL |
1 |
| 13 |
STUFFING BOX GUIDE BUSH |
GFT |
1 |
| 14 |
TRUNNION PAD |
GUN METAL |
1 |
| 15 |
TRUNUION GUIDE BUSH |
SPW 304 WITH GRAPHITE |
1 |
| 16 |
STUFFING BOX GASKET |
A 193 B 7 / A 194 GR. 2H |
2 |
| 17 |
GLAND PLATE STUD & NUT |
VITON RUBBER |
1 |
| 18 |
STUFFING BOX O RING |
VITON RUBBER |
1 |
| 19 |
STEM O RING |
ASTM-A216 GR.WCB |
1 |
| 20 |
TRUNNION GASKET |
SPW 304 WITH GRAPHITE |
1 |
| 21 |
TRUNNION O RING |
VITON RUBBER |
1 |
| 22 |
TRUNNION ALLEN CAP BOLT |
HIGH TENSILE |
4 NOS |
| 23 |
STOPPER |
C.S ZINC PLATED / S.S 304 |
1 |
|
| |
|
| |

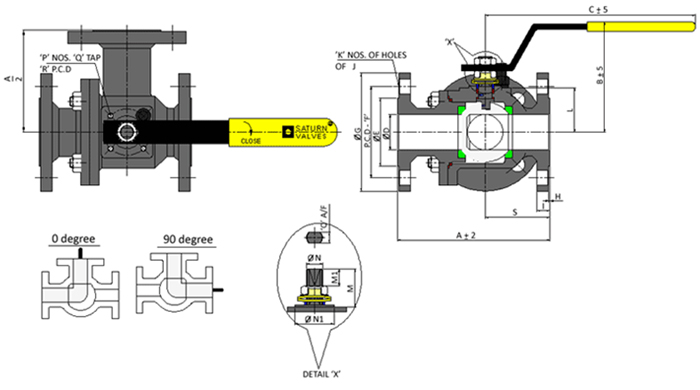

| Dimension View-25-50mm |
| |
 |
| |
|
| #150 |
Valve
size |
A |
B |
C |
ØD |
ØE |
F
PCD |
ØG |
H |
I |
J |
K |
L |
M |
M1 |
ØN |
ØN1 |
O
A/F |
P |
Q |
R
PCD |
ISO
5211 |
| 25 |
127 |
104.5 |
180 |
25.4 |
50.8 |
79.4 |
110 |
1.6 |
11 |
15.8 |
4 |
39.5 |
27 |
12 |
12.7 |
30 |
7.9 |
4 |
M5 |
42 |
F 04 |
| 40 |
165 |
119 |
225 |
38.1 |
73 |
98.4 |
125 |
1.6 |
14.5 |
15.8 |
4 |
48 |
32 |
14 |
14.35 |
35 |
9.52 |
4 |
M6 |
50 |
F 05 |
| 50 |
178 |
128 |
245 |
50.8 |
92 |
120.7 |
150 |
1.6 |
15.8 |
19 |
4 |
61 |
34.5 |
15.5 |
17 |
55 |
11.1 |
4 |
M8 |
70 |
F 07 |
|
| |
ALL DIMENSIONS ARE IN MM |
|

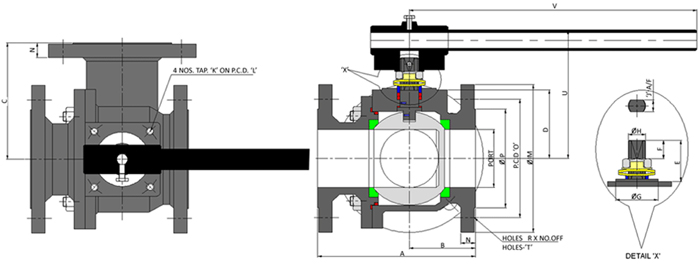

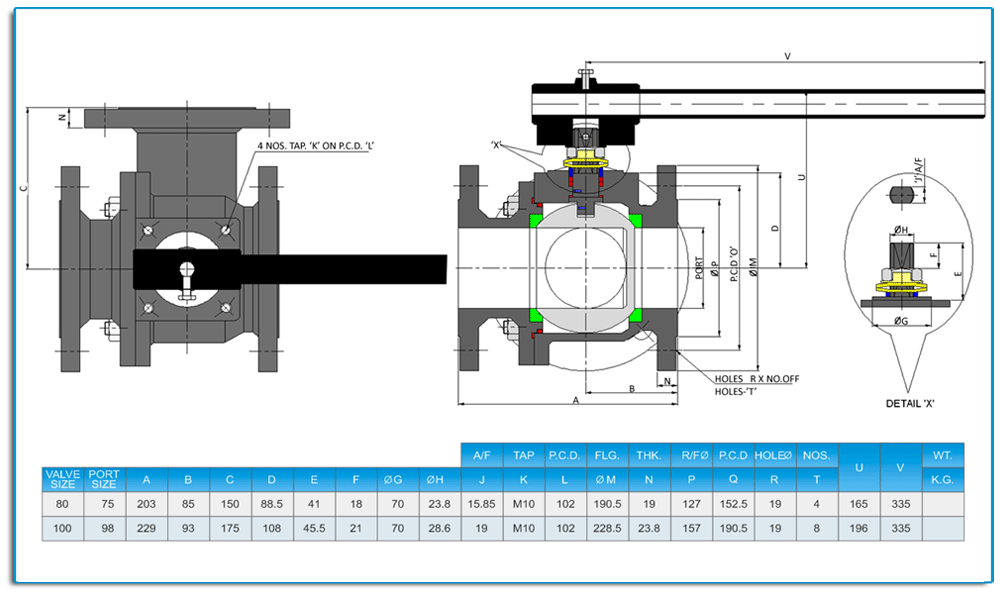

| Dimension View-80-100mm |
| |
 |
| |
|
| |
| |
|
|
|
|
|
|
|
|
|
A/F |
TAP |
P.C.D |
FLG. |
THK. |
R/FØ |
P.C.D |
HOLEØ |
NOS. |
U |
V |
WT. |
Valve
size |
Port
size |
A |
B |
C |
D |
E |
F |
ØG |
ØH |
J |
K |
L |
ØM |
N |
P |
Q |
R |
T |
K.G |
| 80 |
75 |
203 |
85 |
150 |
88.5 |
41 |
18 |
70 |
23.8 |
15.85 |
M10 |
102 |
190.5 |
19 |
127 |
152.5 |
19 |
4 |
165 |
335 |
|
| 100 |
98 |
229 |
93 |
175 |
108 |
45.5 |
21 |
70 |
28.6 |
19 |
M10 |
102 |
228.5 |
23.8 |
157 |
190.5 |
19 |
8 |
196 |
335 |
|
|
| |
ALL DIMENSIONS ARE IN MM |
| |
|

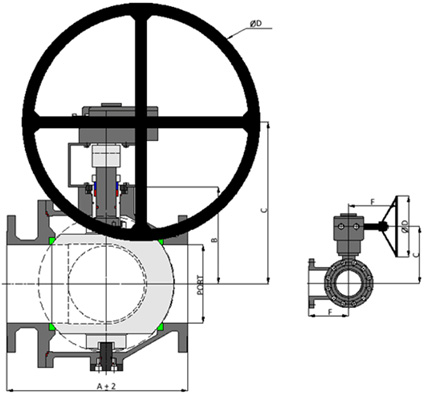

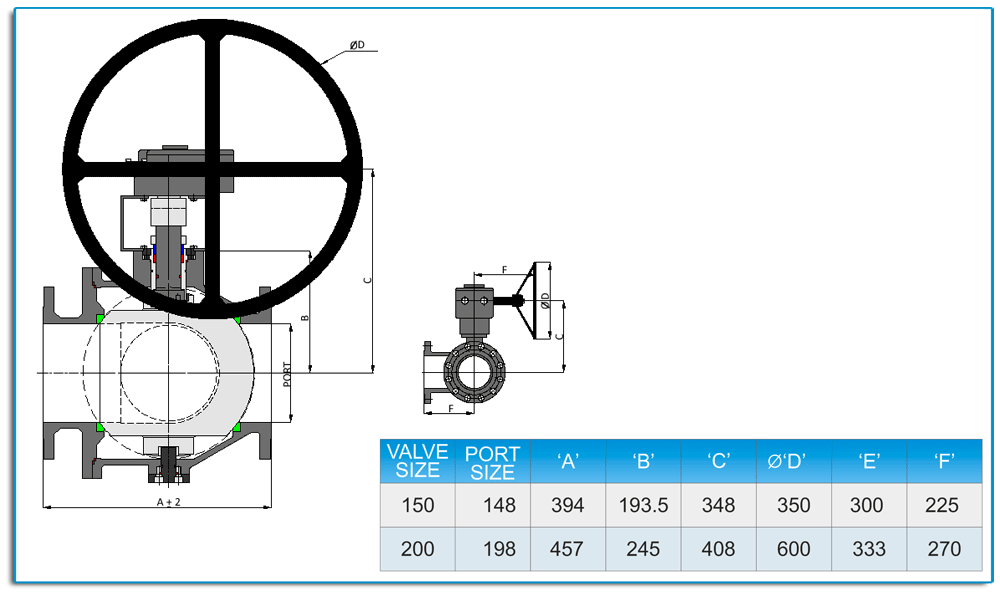

| Dimension View-150-200mm |
| |
 |
| |
|
| |
Valve
size |
Port
Size |
'A' |
'B' |
'C' |
'D' |
'E' |
'F' |
| 150 |
148 |
394 |
193.5 |
348 |
350 |
300 |
225 |
| 200 |
198 |
457 |
245 |
408 |
600 |
333 |
270 |
|
| |
ALL DIMENSIONS ARE IN MM |
| |
|
| |
