Fire Safe Ball Valve

Model :
BL-F-2-R/F-F-A1/A2
Size :
15-150mm
Bore :
Regular/Full bore
Seat :
PTFE/RPTFE/PEEK
Ratings :
150 & 300 Class
Ends :
Flanged
Certified by Lloyds and CEIL as per API 607 Standard

 Click Here for a downloadable and / or printable version of this page.
Design Features | Standard | Option | Exploded View-A1-4 | F - A1-A2 | R-F-A1-A2
A1-4 Gear Operated | Dimension View- 15-50mm | 65-100mm

Design Features Standards
Full or Reduce Bore
Design : ASME B 16.34, BS EN ISO 17292 & API 6D
Renewable Seat & Seals
Pressure Test : API 598 / BS EN ISO 12266-1 / API 6D
Double Body seals (In Fire safe design only)
Face to Face : ASME B 16.10 /API 6D
ISO Mounting pad to suit actuator gear box and other hardware mountings
Flange Dimension. : ANSI B 16.5
Maintenance free live loaded double sealing in gland
Mounting Pad : DIN 3337/ ISO 5211
High cycle stem packing system provides extra longer-service life
Material Certifications : DIN 50.049-3 1B
Anti-Static Device
Nace : MR 01-75 complaint
Blowout proof Stem
Quality Systems / Certifications : ISO 9001:2000, API 6D
'Firesafe to API 607 Std. IV Edition

Option
Extended stem & pad lock capabilities provide maximum safety.
Vented ball to reduce damage caused by trapped cavity pressure.
Cavity free design is available to reduce the possible entrapment of line media fluids between the ball and the shell.

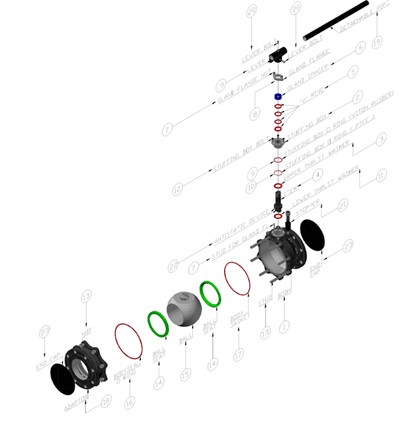

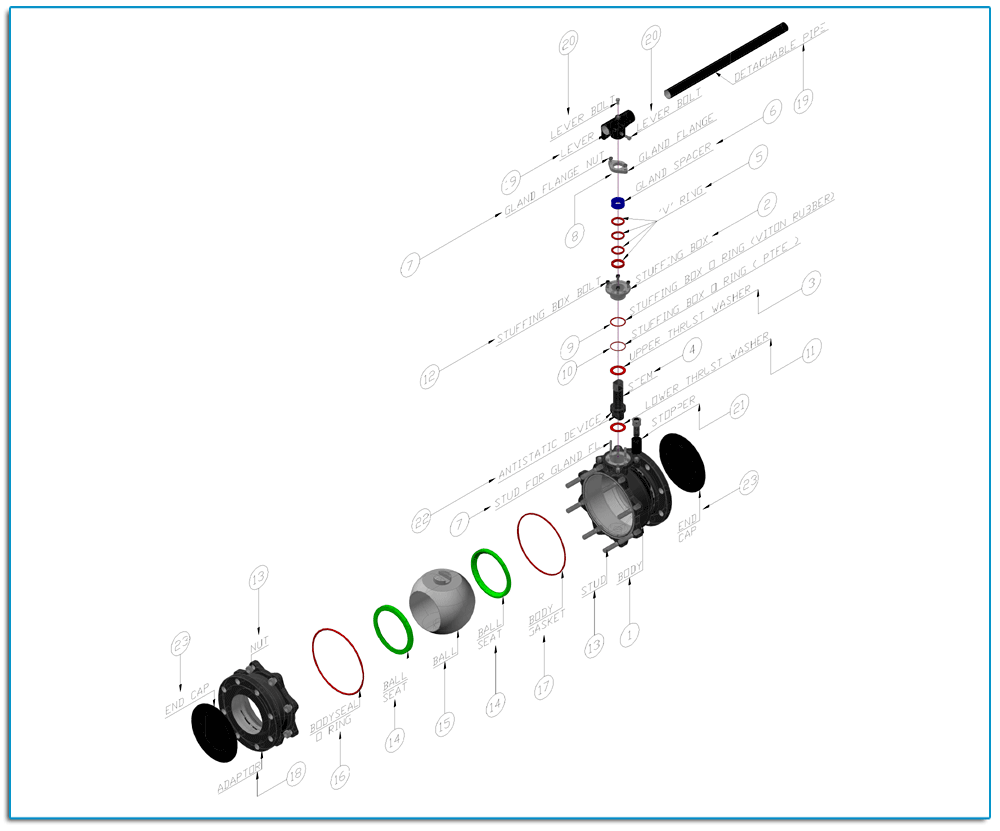

 Exploded View- A1-4

mevada



No. Description Material Qty
1
BODY
LCB / WCB / CF8 / CF8M / CF3 / CF3M
 1
2
STUFFINC BOX
LCB / WCB / CF8 / CF8M / CF3 / CF3M
 1
3
UPPER THRUST WASHER
PTFE / GET / CFT / GRAPHITE
 1
4
STEM
AISI 304 / 304L / 316 / 316L
 1
5
GLAND SEAL RING
A 193 B7 / 2H / B8 / A270 / B8M / 8M
 2 SET
6
GLAND SPACER
C.S / CF8 / CF8M
 1
7
STUD FOR GLAND FL
VITON RUBBER
 1SET
8
GLAND FLANGE
PTFE / GFT / CFT
 1
9
STUFFING BOX O RING
PTFE / GFT / CFT / GRAPHITE
1
10
STUFFING BOX O RING
A 193 B7 / 2H / B8 / A270 / B8M / 8M
 1
11
LOWER THRUST WASHER
PTFE / GFT / CFT
1
12
STUFFING BOX BOLT
A 193 B7 / 2H / B8 / 270 / B8M / 8M
 4
13
BODY JOINT STUD
A 193 B7 / 2H / B8 / A270 / B8M / 8M
 6/8
14
BALL SEAT
PTFE / GFT / CFT / SP. R PTFE
 2
15
BALL
CF8 / CF3 / CF8M / CF3M
 1
16
BODY SEAL O RING
VITON RUBBER
 1
17
BODY GASKET
SPW 304 / 304L / 316 316L GRA.FILLED
 1
18
ADAPTOR
LCB / WCB / CF8 / CF8M / CF3 / CF3M
 1
19
LEVER WITH DETACHABLE PIPE
INVEST CASTWCB / CF8 / WITH C.S PIPE
 1 SET
20
LEVER BOLT
C.S ZINC PLATED / S.S 304
 2
21
STOPPER
C.S ZINC PLATED / S.S 304
 1
22
ANTISTATIC DEVICE
AISI 316 / 316L
 2
23
END CAP
RUBBER
 2

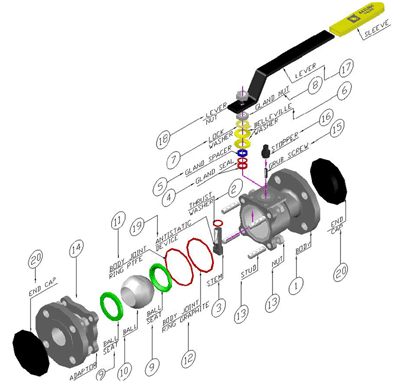

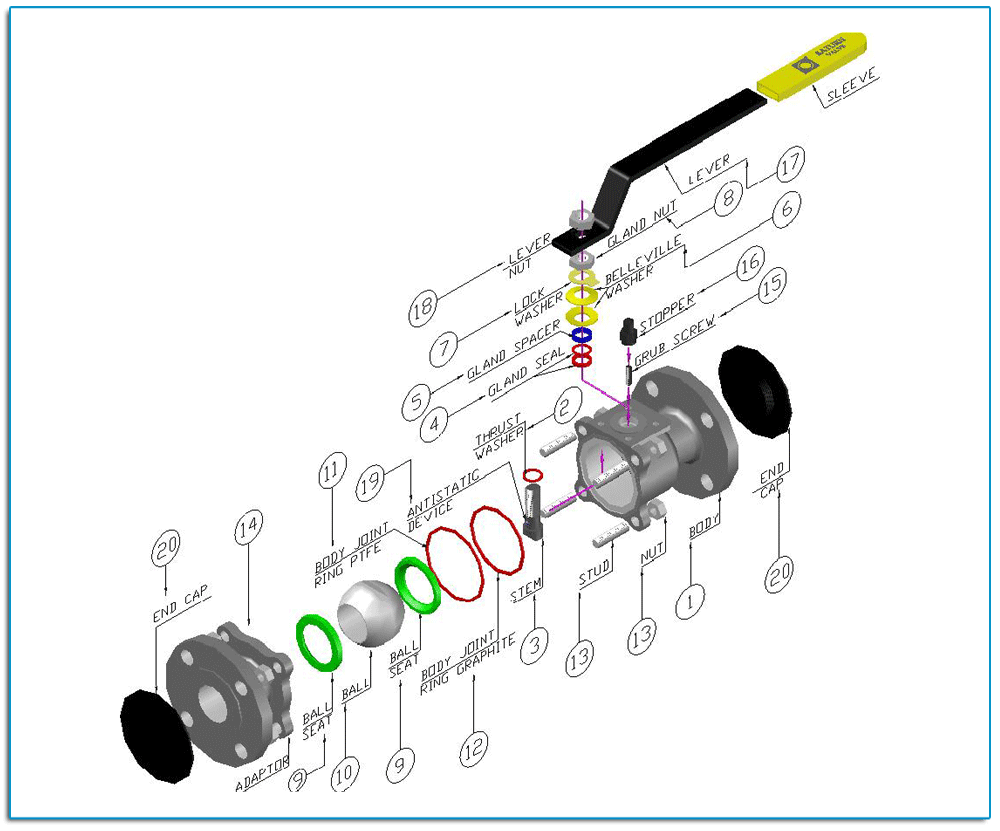

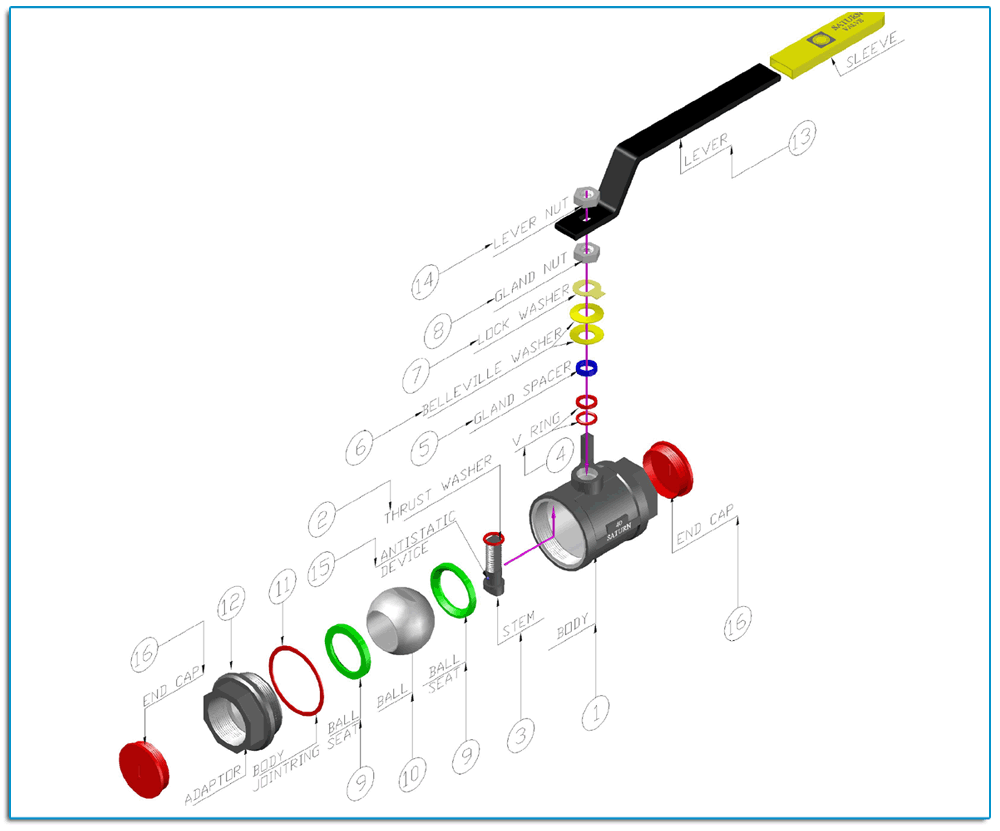

 Exploded View- F-F-A1-A2

mevada


No. Description Material Qty
1
BODY
LCB / WCB / CF8 / CF8M / CF3 / CF3M
 1
2
THRUST WASHER
PTFE / GET / CFT
1
3
STEM
AISI 304 / 304L / 316 / 316L
 1
4
GLAND SEAL RING
PTFE / GET / CFT / GRAPHITE
 1 SET
5
GLAND SPACER
AISI 316 / 316L
 1
6
BELLEVILLE WASHER
SPRING STEEL ZINC PLATED / S.S 304
 2
7
LOCK WASHER
C.S ZINC PLATED / S.S 304
 1
8
GLAND NUT
C.S ZINC PLATED / S.S 304 /S.S 316
 1
9
BALL SEAT
PTFE / GFT / CFT / GRAPHITE
2
10
BALL
CF8 / CF3 / CF8M / CF3 / CF3M
 1
11
PRAIMARY BODY JOINT RING
PTFE / GFT / CFT
1
12
SECONDARY BODY JOINT
GRAPHITE
 1
13
STUD & NUT
A 193 B7/ 2H / B8/ 27 / 8M / 316
 4/6
14
ADAPTOR
LCB / WCB / CF8 / CF8M / CF3 / CF3M
 1
15
GRUB SCREW
HIGH TENSILE
 1
16
STOPPER
C.S ZINC PLATED / S.S 304
 1
17
LEVER WITH PVC SLEEVE
C.S P.C / CF8
1
18
LEVER NUT
C.S ZINC PLATED / S.S 304
 1
19
ANTISTATIC DEVICE
AISI 316 / 316L
 1/2
20
END CAP
RUBBER
 2

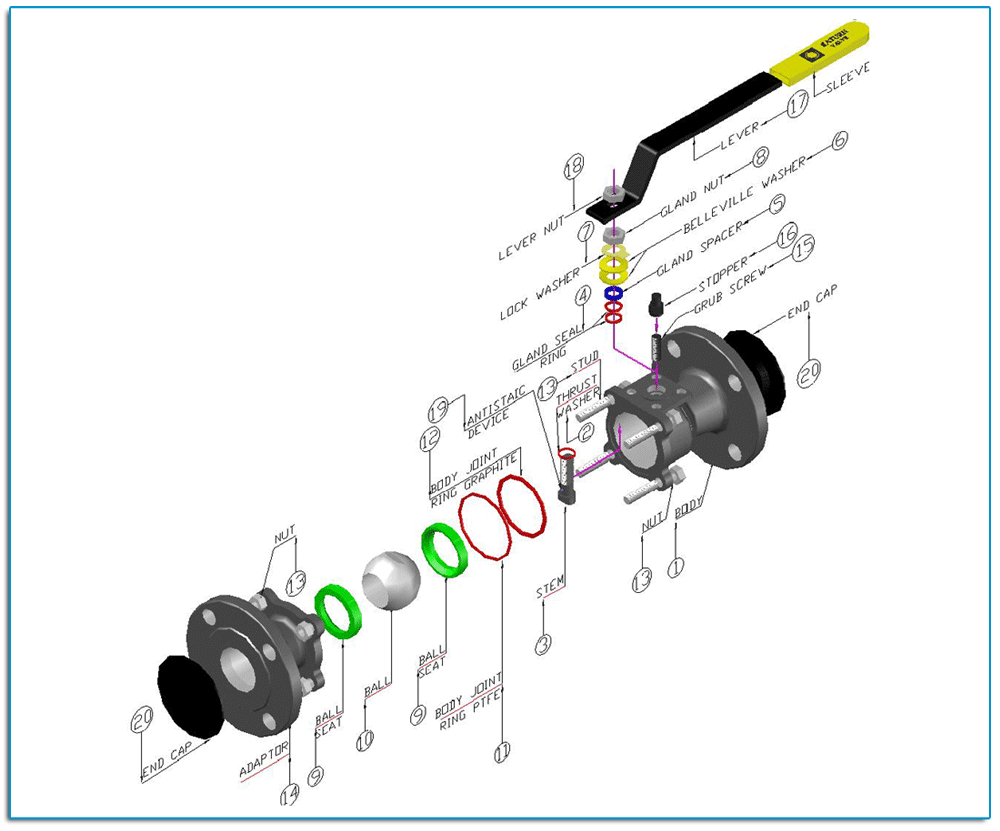

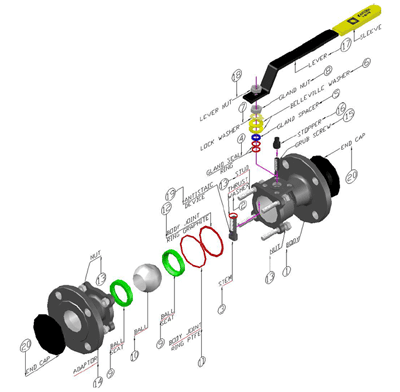

 Exploded View- R-F-A1-A2

mevada


No. Description Material Qty
1
BODY
LCB / WCB / CF8 / CF8M / CF3 / CF3M
 1
2
THRUST WASHER
PTFE / GET / CFT
1
3
STEM
AISI 304 / 304L / 316 / 316L
 1
4
GLAND SEAL RING
PTFE / GET / CFT / GRAPHITE
 1 SET
5
GLAND SPACER
AISI 316 / 316L
 1
6
BELLEVILLE WASHER
SPRING STEEL ZINC PLATED / S.S 304
 2
7
LOCK WASHER
C.S ZINC PLATED / S.S 304
 1
8
GLAND NUT
C.S ZINC PLATED / S.S 304 /S.S 316
 1
9
BALL SEAT
PTFE / GFT / CFT / GRAPHITE
2
10
BALL
CF8 / CF3 / CF8M / CF3 / CF3M
 1
11
PRAIMARY BODY JOINT RING
PTFE / GFT / CFT
1
12
SECONDARY BODY JOINT
GRAPHITE
 1
13
STUD & NUT
A 193 B7/ 2H / B8/ 27 / 8M / 316
 4/6
14
ADAPTOR
LCB / WCB / CF8 / CF8M / CF3 / CF3M
 1
15
GRUB SCREW
HIGH TENSILE
 1
16
STOPPER
C.S ZINC PLATED / S.S 304
 1
17
LEVER WITH PVC SLEEVE
C.S P.C / CF8
1
18
LEVER NUT
C.S ZINC PLATED / S.S 304
 1
19
ANTISTATIC DEVICE
AISI 316 / 316L
 1/2
20
END CAP
RUBBER
 2

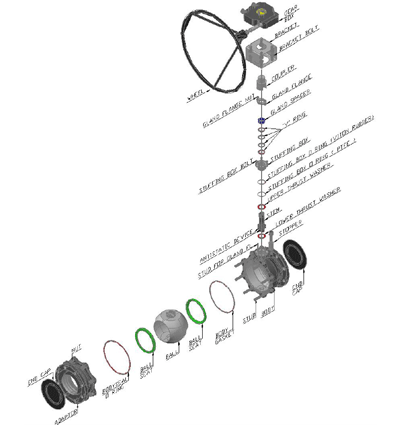

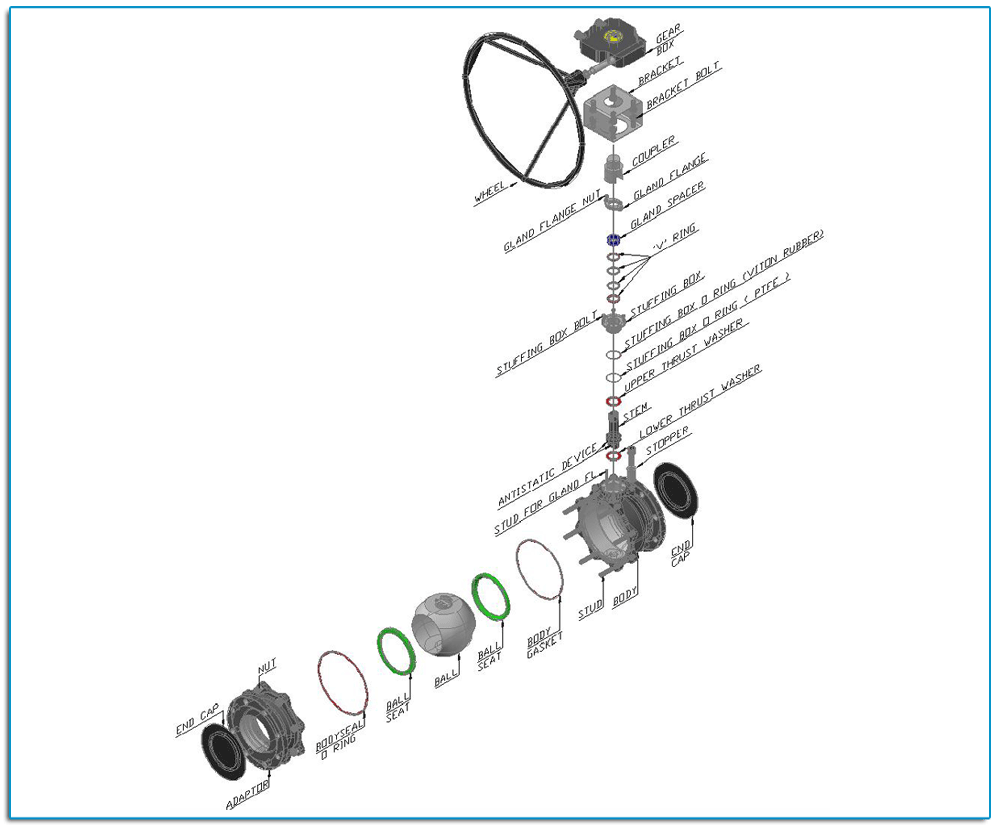

 Exploded View- A1-4 Gear Operated


mevada


No. Description Material Qty
1
BODY
LCB / WCB / CF8 / CF8M / CF3 / CF3M
 1
2
STUFFINGN BOX
LCB / WCB / CF8 / CF8M / CF3 / CF3M
 1
3
UPPER THRUST WASHER
PTFE / GET / CFT / GRAPHITE
 1
4
STEM
AISI 304 / 304L 316 / 316L
1
5
GLAND SEAL RING
PTFE / GET / CFT / GRAPHITE
 2 SET
6
GLAND SPACER
AISI 304 / 304L 316 / 316L
1
7
STUD FOR GLAND FL
A 193 B7/ 2H / B8/ A270 / B8M / 8M
2 SET
8
GLAND FLANGE
C.S / CF8 / CF8M
1
9
STUFFING BOX O RING
VITON RUBBER
1
10
STUFFING BOX O RING
PTFE / GFT / CFT
1
11
LOWER THRUST WASHER
PTFE / GFT / CFT / GRAPHITE
1
12
STUFFING BOX BOLT
A 193 B7/ 2H / B8/ A270 / B8M / 8M
4
13
BODY JOINT STUD
A 193 B7/ 2H / B8/ A270 / B8M / 8M
6/8
14
BALL SEAT
PTFE / GFT / CFT / SP. R PTFE
2
15
BALL
A 193 B7/ 2H / B8/ 27 / 8M / 316
 1
16
BODY SEAL O RING
CF8 / CF3 / CF8M / CF3 / CF3M
1
17
BODY GASKET
VITON RUBBER
1
18
ADAPTOR
SPW 304 / 304L / 316 / 316L GRA. FILLED
1
19
COUPLER
LCB / WCB / CF8 / CF8M / CF3 / CF3M
 1 SET
20
BRACKET
S.S 304
1
21
BRACKET BOLT
C.S ZINC PLATED
8
22
GEAR BOX
C.S
1
23
STOPPER
C.S ZINC PLATED / S.S 304
 1
24
ANTISTATIC DEVICE
AISI 316 / 316L
 2
25
END CAP
RUBBER
 2

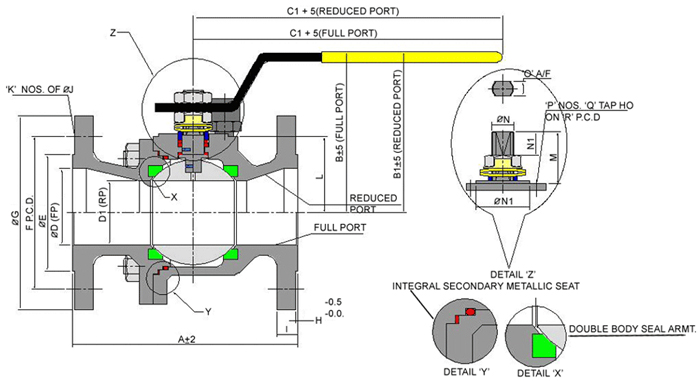

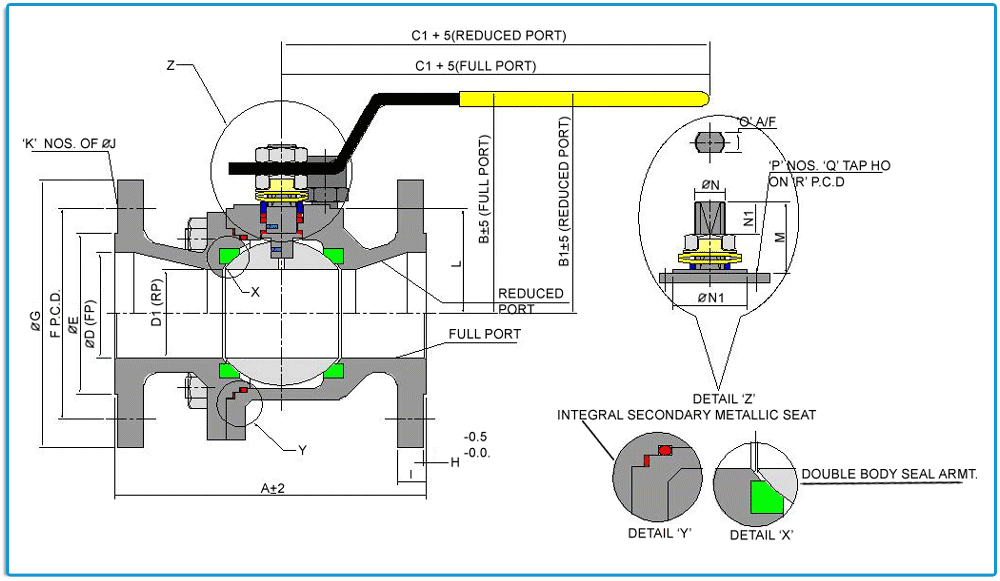

 Dimension View-15-50mm



#150
Valve
size		 A RB FB ØE F
PCD		 ØG H I J K L M M1 ØN ØN1 'Q'
A/F		 P Q R
PCD		 ISO
5211
B1 C1 D1 B C ØD
15 108 81 156 12.7 81 156 12.7 35 60.5 90 2 10 15.9 4 29.5 15 9.5 11.1 25 6.3 4 M5 36 F03
20 117 81 156 12.7 85 156 19 42.8 70 100 2 10.9 15.9 4 33 16.5 7.5 11.1 30 6.3 4 M5 42 F04
25 127 85 156 19 99 178 25.4 50.8 79.5 110 2 11.6 15.9 4 39.5 24.7 12 12.7 30 7.9 4 M5 42 F04
32 140 99 178 25.4 103 178 31.7 63.5 89 115 2 13.2 15.9 4 45 25.9 15.3 12.7 35 7.9 4 M6 50 F05
40 165 103 178 31.7 115 225 38.1 73 98.5 125 2 14.7 15.9 4 46 32.7 13.7 14.3 35 9.5 4 M6 50 F05
50 178 115 225 38.1 124 245 50.8 92 120.5 150 2 16.3 19 4 60 34 17 17 55 11.1 4 M8 70 F07
  ALL DIMENSIONS ARE IN MM
#300
Valve
size		 A RB FB ØE F
PCD		 ØG H I J K L M M1 ØN ØN1 O P Q R
PCD		 ISO
5211
B1 C1 D1 B C D
15 140 81 156 12.7 81 156 13 35 66.5 95 2 14.7 15.9 4 29.5 15.5 9.5 11.1 25 6.3 4 M5 36 F03
25 152 81 156 12.7 85 156 19 42.8 82.5 115 2 16.3 19 4 33 16 9.5 11.1 30 6.3 4 M5 42 F04
20 165 85 156 19 101 178 25.4 50.8 89 125 2 17.9 19 4 39.5 24.7 12 12.7 30 7.9 4 M5 42 F04
32 178 101 178 25.4 103 178 31.7 63.5 98.5 135 2 19.5 19 4 45 25.9 15.3 12.7 35 7.9 4 M6 50 F05
40 190 103 178 31.7 116 225 38.1 73 114.5 155 2 21.1 22.2 4 46 32.7 14 14.3 35 9.5 4 M6 50 F05
50 216 116 225 38.1 126 245 50.8 92 127 165 2 22.7 19 8 60 34 15.5 17 55 11.1 4 M8 70 F07
  ALL DIMENSIONS ARE IN MM
#600
Valve
size		 A RB FB ØE F
PCD		 ØG H I J K L M M1 ØN ØN1

O
A/F

 P Q R
PCD		 ISO
5211
B1 C1 ØD1 B C ØG
15 165 81 156 12.7 81 156 12.7 35 67 95 7 21.3 15.8 4 29.5 15.5 8.5 11.1 25 6.3 4 M5 36 F03
20 190 81 156 12.7 85 156 19 43 82.5 115 7 22.9 19 4 33 15 8.5 11.1 30 6.3 4 M5 42 F04
25 216 85 156 19 110 225 25.4 51 89 125 7 24.5 19 4 39.5 34.5 14 14.3 35 9.5 4 M6 50 F05
40 241 110 225 31.7 117 225 38.1 73 114.5 155 7 29.3 22.2 4 50 41.5 15.5 17 35 11.1 4 M6 50 F05
50 292 117 225 38.1 152 245 50.8 92 127 165 7 32.5 19 8 69 41.5 15.5 17 55 11.1 4 M8 70 F07
  ALL DIMENSIONS ARE IN MM

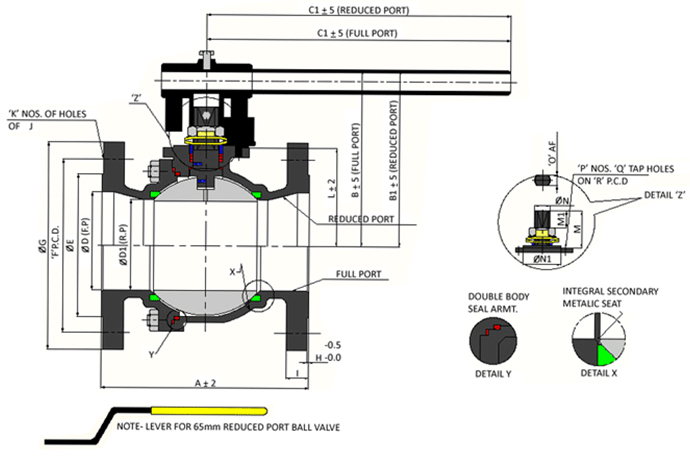

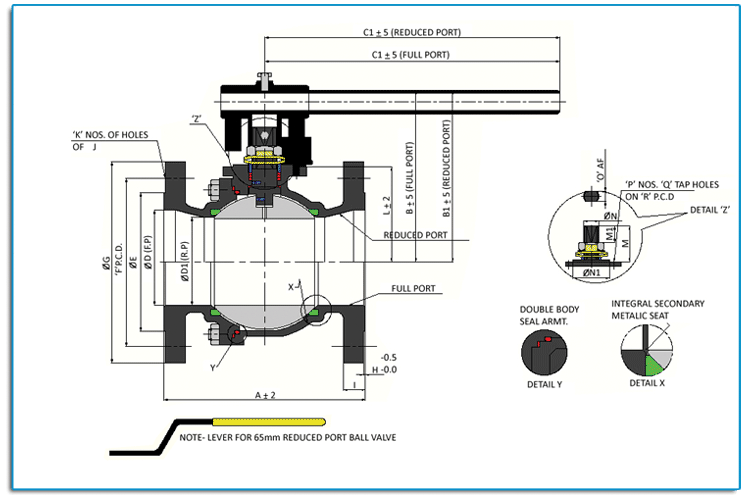

 Dimension View- 65-100MM




# 150
Valve
size		 A FP
B		 RP
B1		 FP
C		 RP
C1		 FP
ØD 		RP
D1		 ØE F
PCD		 ØG H I J K L M M1 ØN ØN1 O
A/F		 P Q R
PCD		 ISO
5211
65 190 132 115 269 225 63.5 50.8 105 140 178 2 17.5 19 4 75 32 15.5 17 55 11.1 4 M8 70 F07
80 203 161 132 335 269 75 63.5 127 152.5 190.5 2 19 19 4 88.5 40 20.6 23.8 70 15.87 4 M10 102 F10
100 229 195 161 335 335 98 75 157 190.5 229 2 23.9 19 8 108 45.5 21.2 28.6 70 19 4 M10 102 F10
  ALL DIMENSIONS ARE IN MM
# 300
Valve
size		 A FP
B		 RP
B1		 FP
C		 RP
C1		 FP
ØD 		RP
D1		 ØE F
PCD		 ØG H I J K L M M1 ØN ØN1 O
A/F		 P Q R
PCD		 ISO
5211
65 241 132 116 269 225 63.5 50.8 105 149.5 191 2 25.9 22.2 8 75 32 15.5 17 55 11.1 4 M8 70 F07
80 283 161 132 335 269 75 63.5 127 168.5 210 2 29 22.2 8 88.5 40 20.6 23.8 70 15.87 4 M10 102 F10
100 305 195 161 335 335 98 75 157 200 254 2 32.2 22.2 8 108 45.5 21.2 28.6 70 19 4 M10 102 F10
  ALL DIMENSIONS ARE IN MM
# 600
Valve
size		 A FP
B		 RP
B1		 FP
C		 RP
C1		 FP D RP
D1		 ØE F
PCD		 ØG H I J K L M M1 ØN ØN1 O
A/F		 P Q R
PCD		 ISO
5211
80 356 178 132 335 269 75 63.5 127 168.3 210 7 39.5 22.2 8 90 46.5 21.5 28.6 70 19 4 M10 102 F 10
100 432 197 178 335 335 98 75 157 215.9 275 7 45.5 25.4 8 108 45.5 20.5 28.6 70 19 4 M10 102 F 10
  ALL DIMENSIONS ARE IN MM
