Three Piece Swing Out Design, Threaded, Socket Weld Ends 800# Ball Valve |
| |
|
|
REGULAR BORE |
BL-3E-R-P-A4(Threaded Ends to BSP II) |
BL-3E-R-N-A4 (Threaded Ends to NPT) |
BL-3E-R-W-A4 (Socket weld Ends) |
|
FULL BORE |
BL-3E-F-P-A4 (Threaded Ends to BSP II) |
BL-3E-F-N-A4 (Threaded Ends to NPT) |
BL-3E-F-W-A4 (Socket weld Ends) |
|
Size : |
8-50 mm |
Bore : |
Regular Bore / Full bore |
Material : |
Carbon Steel, Stainless Steel and Alloy Steel |
Seat : |
PTFE / RPTFE / NYLON / DEVLON / PEEK |
Ratings : |
800 Class |
Ends : |
Screwed to BSP II |
|
NPT Socket weld |
|
 |
|
 Click Here for a downloadable and / or printable version of this page. |
| Design Features | Standards | Option | Exploded View | Dimension View |
| |
|
| Design Features |
Standards |
Fast & Economical In-line Maintenance . |
Design : ASME B 16.34, BS EN ISO 17292 |
Full or Reduce Bore |
Pressure Test : API 598 / BS EN ISO 12266-1 |
Self adjustable gland packing |
End to end : Manufacturer standards |
Renewable Seat & Seals |
Ends Dimension : |
1) Screwed meets ANSI B2.1 |
| 2) Socket weld meets ANBI B 16.11 |
| 3) Butt weld meets ANBI B 16.25 |
ISO Mounting pad to suit actuator gear box and other hardware mountings |
Mounting Pad : DIN 3337/ ISO 5211 |
Maintenance free live loaded double sealing |
Material Certifications : DIN 50.049-3 1B |
High cycle stem packing system provides extra longer service life |
Quality Systems / Certifications : ISO 9001:2008 |
Anti-Static Device |
|
Blowout proof Stem |
|
Centering Lugs for easy allignment |
|
'O' ring style body seals for better joint sealing & resuable(for Screwed, Socket & buttweld ends) |
|
|
| |
| Option |
| Extended 100mm long pre-welded pipes in SW valve to avoid destortion of ball seats |
| Extended stem & pad lock capabilities provide maximum safety. |
| Vented ball to reduce damage caused by trapped cavity pressure. |
| Cavity free seals are available to reduce the possible entrapment of line media fluids between the ball and the shell. |
| |
|
| |
| Exploded View |
| |
|
|
|
|
| |
| No. |
Description |
Material |
Qty |
| 1 |
BODY |
A 105 / LCB / WCB / CF8 /CF8M / CF3 / CF3M / CDM / CN7M / HAST-C / SS904L |
1 |
| 2 |
THRUST WASHER |
PTFE / GFT / CFT |
1 |
| 3 |
STEM |
AISI 304 / 304L / 316 / 316L / CDM / CN7M / HAST-C / SS904L / MONEL 400 |
1 |
| 4 |
GLAND SEAL RING |
PTFE / GET / CFT / GRAPHITE |
1 SET |
| 5 |
GLAND SPACER |
AISI 316 / 316L |
1 |
| 6 |
BELLEVILLE WASHER |
SPRING STEEL ZINC PLATED / S.S 304 |
2 |
| 7 |
LOCK WASHER |
S.S 304 |
1 |
| 8 |
GLAND NUT |
C.S ZINC PLATED / S.S 304 / S.S 316 |
1 |
| 9 |
BALL |
CF8 / CF3 / CF8M / CF3 / CF3M |
1 |
| 10 |
BODY JOINT RING |
CF8 / CF8M / CF3 / CF3M / CDM/CN7M / HAST-C / SS904L / M-35 |
2 |
| 11 |
BODY SEAT |
PTFE / GFT / CFT / NYLON / DEVLON / PEEK |
2 |
| 12 |
ADAPTOR |
WCB / CF8 / CF8M / CF3 / CF3M |
2 |
| 13 |
STUD & NUT |
A 193 GR.B7 & A194 GR.2H,
A 193 GR. B8 / A 270, A 193 GR. B8M & A 194 GR.8M,
A 320 L7 & B8 |
4 |
| 14 |
GRUB SCREW |
HIGH TENSILE |
1 |
| 15 |
STOPPER |
C.S ZINC PLATED / AISI 304 |
1 |
| 16 |
LEVER WITH PVC SLEEVE |
C.S POWDER COATED / CF8 |
1 |
| 17 |
LEVER NUT |
C.S ZINC PLATED / AISI 304 |
1 |
| 18 |
ANTISTATIC DEVICE |
AISI 316 / 316L |
1/2 |
| 19 |
END CAP |
PVC |
2 |
|
| |
|
| |

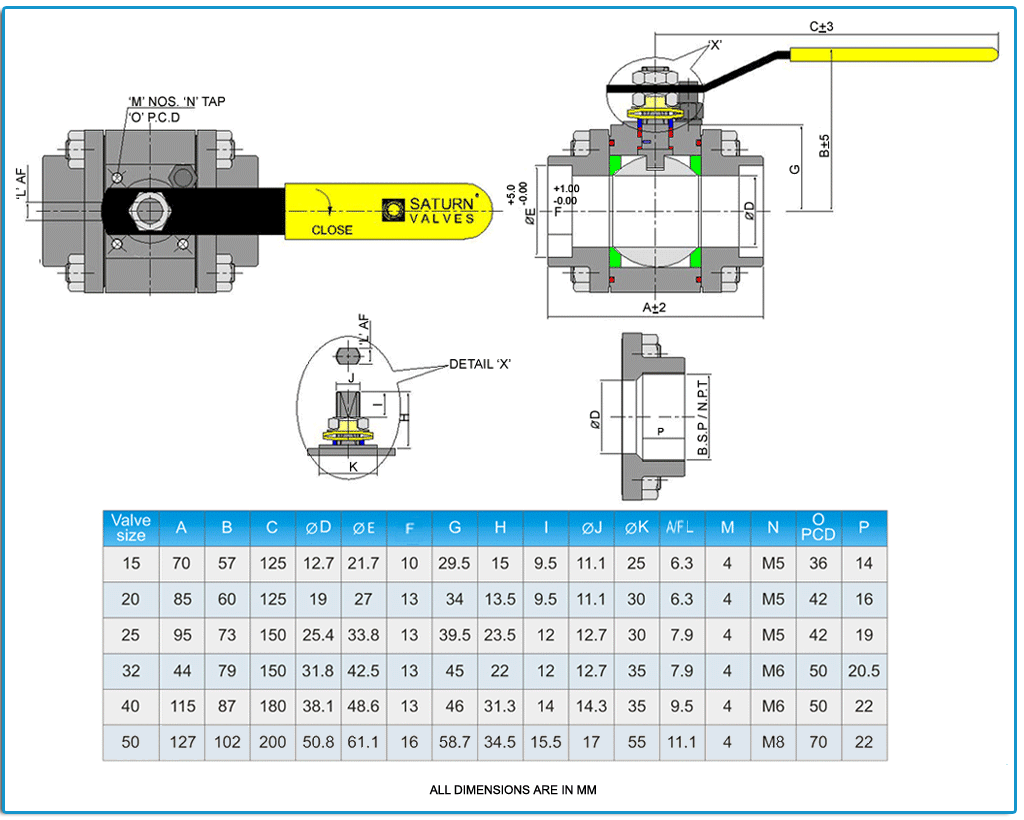

| Dimension View |
| |
 |
| |
|
| |
Valve
size |
A |
B |
C |
ØD |
ØE |
ØF |
G |
H |
I |
ØJ |
ØK |
A/FL |
M |
N |
O
PCD |
P |
| 15 |
70 |
57 |
125 |
12.7 |
21.7 |
10 |
29.5 |
15 |
9.5 |
11.1 |
25 |
6.3 |
4 |
M5 |
36 |
14 |
| 20 |
85 |
60 |
125 |
19 |
27 |
13 |
34 |
13.5 |
9.5 |
11.1 |
30 |
6.3 |
4 |
M5 |
42 |
16 |
| 25 |
95 |
73 |
150 |
25.4 |
33.8 |
13 |
39.5 |
23.5 |
12 |
12.7 |
30 |
7.9 |
4 |
M5 |
42 |
19 |
| 32 |
44 |
79 |
150 |
31.8 |
42.5 |
13 |
45 |
22 |
12 |
12.7 |
35 |
7.9 |
4 |
M6 |
50 |
20.5 |
| 40 |
115 |
87 |
180 |
38.1 |
48.6 |
13 |
46 |
31.3 |
14 |
14.3 |
35 |
9.5 |
4 |
M6 |
50 |
22 |
| 50 |
127 |
102 |
200 |
50.8 |
61.1 |
16 |
58.7 |
34.5 |
15.5 |
17 |
55 |
11.1 |
4 |
M8 |
70 |
22 |
|
| |
ALL DIMENSIONS ARE IN MM |
| |
|
| |
