Two Piece Design, Side Entry, Flange End Ball Valve
 |
| |
Model : |
REGULAR BORE
BL-2-R-F-A1 (150#)
BL-2-R-F-A2 (300#) |
FULL BORE
BL-2-F-F-A1 (150#)
BL-2-F-F-A2 (300#)
BL-2-F-F-A3 (600#)
BL-2-F-F-A5 (900#) |
|
| |
Size : |
15-300mm |
Bore : |
Regular / Full bore |
Material : |
Carbon Steel, Stainless Steel and Alloy Steel |
Seat : |
PTFE/ RPTFE / DEVLON / PEEK |
Ratings : |
150 / 300 / 600 / 900 Class |
Ends : |
Flanged |
|
 |
|
 Click Here for a downloadable and / or printable version of this page. |
| Design Features | Standard | Option | Exploded View-150mm-Lever Operated | 15-100mm | |
 |
| 150-300mm-Gear Operated | Dimensions View-15-50mm | 150-300mm-Gear Operated |
| |
|
| Design Features |
Standards |
Full or Reduce Bore |
Design : ASME B 16.34, BS EN ISO 17292 & API 6D |
Renewable Seat & Seals |
Pressure Test : API 598 / BS EN ISO 12266-1 / API 6D |
Double Body seals (In Fire safe design only) |
Face to Face : ASME B 16.10 /API 6D |
ISO Mounting pad to suit actuator gear box and other hardware mountings |
Flange Dimension : ANSI B 16.5 |
Maintenance free live loaded double sealing in gland |
Mounting Pad : DIN 3337/ ISO 5211 |
High cycle stem packing system provides extra longer-service life |
Material Certifications : DIN 50.049-3 1B |
Anti-Static Device |
Nace MR 01-75 complaint |
Blowout proof Stem |
Quality Systems / Certifications : ISO 9001:2008, API 6D |
'Firesafe to API 607 Std. IV Edition |
|
|
| |
| Option |
| Extended stem & pad lock capabilities provide maximum safety. |
| Vented ball to reduce damage caused by trapped cavity pressure. |
| Cavity free seals are available to reduce the possible entrapment of line media fluids between the ball and the shell |
| |
 |
| |
| Exploded View - 150mm-Lever Operated |
| |
| |
|
|
| |
| No. |
Description |
Material |
Qty |
| 1 |
BODY |
LCB / WCB / CF8 / CF8M / CF3 / CF3M / CDM / CN7M / HAST-C / SS904L |
1 |
| 2 |
STUFFING BOX |
LCB / WCB / CF8 / CF8M / CF3 / CF3M |
1 |
| 3 |
UPPER THRUST WASHER |
PTFE / GET / CFT / GRAPHITE |
1 |
| 4 |
STEM |
AISI 304 / 304L / 316 / 316L / CDM / CN7M/HAST-C / SS904L / MONEL 400 |
1 |
| 5 |
GLAND SEAL RING |
PTFE / CFT / GRAPHITE |
2 SET |
| 6 |
GLAND SPACER |
AISI 304 / 304L / 316 / 316L |
1 |
| 7 |
STUD FOR GLAND FL |
A193B7 / A1942H |
1SET |
| 8 |
GLAND FLANGE |
CS / CF8 / CF8M |
1 |
| 9 |
STUFFING BOX O RING |
VITON |
1 |
| 10 |
STUFFING BOX O RING |
PTFE / GFT / CFT |
1 |
| 11 |
LOWER THRUST WASHER |
PTFE / GFT / CFT / GRAPHITE |
1 |
| 12 |
STUFFING BOX BOLT |
A 193 B7 / 2H / B8 / 270 / B8M / 8M |
4 |
| 13 |
BODY JOINT STUD |
A 193 B7 / 2H / B8 / A270 / B8M / 8M |
6/8 |
| 14 |
BALL SEAT |
PTFE / GFT/ CFT / DEVLON / PEEK |
2 |
| 15 |
BALL |
CF8 / CF8M / CF3 / CF3M / CDM / CN7M/HAST-C / SS904L / M-35 |
1 |
| 16 |
BODY SEAL O RING |
VITON RUBBER |
1 |
| 17 |
BODY GASKET |
SPW SS GRAPHITE |
1 |
| 18 |
ADAPTOR |
LCB / WCB / CF8 / CF8M / CF3 / CF3M / CDM / CN7M / HAST-C / SS904L |
1 |
| 19 |
LEVER WITH DETACHABLE PIPE |
INVEST CASTWCB / CF8 / WITH C.S PIPE |
1 SET |
| 20 |
LEVER BOLT |
C.S ZINC PLATED / S.S 304 |
2 |
| 21 |
STOPPER |
C.S ZINC PLATED / S.S 304 |
1 |
| 22 |
ANTISTATIC DEVICE |
AISI 316 / 316L |
2 |
| 23 |
END CAP |
RUBBER |
2 |
|
| |
|
| |
| Exploded View - 15-100mm |
| |
 |
|
|
| |
| No. |
Description |
Material |
Qty |
| 1 |
BODY |
LCB / WCB / CF8 / CF8M / CF3 / CF3M / CDM / CN7M / HAST-C / SS904L |
1 |
| 2 |
THRUST WASHER |
PTFE / GET / CFT |
1 |
| 3 |
STEM |
AISI 304 / 304L / 316 / 316L / CDM / CN7M / HAST-C / SS904L / MONEL 400 |
1 |
| 4 |
GLAND SEAL RING |
PTFE / GET / CFT / GRAPHITE |
1 SET |
| 5 |
GLAND SPACER |
AISI 316 / 316L |
1 |
| 6 |
BELLEVILLE WASHER |
SPRING STEEL ZINC PLATED / S.S 304 |
2 |
| 7 |
LOCK WASHER |
C.S ZINC PLATED / S.S 304 |
1 |
| 8 |
GLAND NUT |
C.S ZINC PLATED / S.S 304 /S.S 316 |
1 |
| 9 |
BALL SEAT |
PTFE / GFT / CFT / GRAPHITE |
2 |
| 10 |
BALL |
CF8 / CF8M / CF3 / CF3M / CDM / CN7M / HAST-C / SS904L / M-35 |
1 |
| 11 |
PRAIMARY BODY JOINT RING |
PTFE / GFT / CFT |
1 |
| 12 |
SECONDARY BODY JOINT |
GRAPHITE |
1 |
| 13 |
STUD & NUT |
a. A 193 GR.B7 & A194 GR.2H,
b. A 193 GR. B8 & A 194 GR.8,
c. A 193 GR. B8M & A 194 GR.8M,
d. A 320 L7 & B8 |
4/6 |
| 14 |
ADAPTOR |
LCB / WCB / CF8 / CF8M / CF3 / CF3M |
1 |
| 15 |
GRUB SCREW |
HIGH TENSILE |
1 |
| 16 |
STOPPER |
C.S ZINC PLATED / S.S 304 |
1 |
| 17 |
LEVER WITH PVC SLEEVE |
C.S P.C / CF8 |
1 |
| 18 |
LEVER NUT |
C.S ZINC PLATED / S.S 304 |
1 |
| 19 |
ANTISTATIC DEVICE |
AISI 316 / 316L |
1/2 |
| 20 |
END CAP |
RUBBER |
2 |
|
| |
|
| |
| Exploded View - 150-300mm-Gear Operated |
| |
 |
|
|
| |
| No. |
Description |
Material |
Qty |
| 1 |
BODY |
LCB / WCB / CF8 / CF8M / CF3 / CF3M / CDM / CN7M / HAST-C / SS904L |
1 |
| 2 |
STUFFING BOX |
LCB / WCB / CF8 / CF8M / CF3 / CF3M |
1 |
| 3 |
UPPER THRUST WASHER |
PTFE / GET / CFT / GRAPHITE |
1 |
| 4 |
STEM |
AISI 304 / 304L / 316 / 316L / CDM / CN7M/HAST-C / SS904L / MONEL 400 |
1 |
| 5 |
GLAND SEAL RING |
|
2 SET |
| 6 |
GLAND SPACER |
AISI 304 / 304L 316 / 316L |
1 |
| 7 |
STUD FOR GLAND FL |
A193B7 / A1942H |
1 SET |
| 8 |
GLAND FLANGE |
CS / CF8 / CF8M |
1 |
| 9 |
STUFFING BOX O RING |
VITON |
1 |
| 10 |
STUFFING BOX O RING |
PTFE / GFT / CFT |
1 |
| 11 |
LOWER THRUST WASHER |
PTFE / GFT / CFT / GRAPHITE |
1 |
| 12 |
STUFFING BOX BOLT |
A 193 B7/ 2H / B8/ A270 / B8M / 8M |
4 |
| 13 |
BODY JOINT STUD |
A 193 B7/ 2H / B8/ A270 / B8M / 8M |
6/8 |
| 14 |
BALL SEAT |
PTFE / GFT / CFT / DEVLON / PEEK |
2 |
| 15 |
BALL |
CF8 / CF8M / CF3 / CF3M / CDM/CN7M / HAST-C / SS904L / M-35 |
1 |
| 16 |
BODY SEAL O RING |
VITON |
1 |
| 17 |
BODY GASKET |
SPW SS GRAPHITE |
1 |
| 18 |
ADAPTOR |
LCB / WCB / CF8 / CF8M / CF3 / CF3M / CDM / CN7M / HAST-C / SS904L |
1 |
| 19 |
COUPLER |
SS 410 / 304 |
1 SET |
| 20 |
BRACKET |
CS / WCB |
1 |
| 21 |
BRACKET BOLT |
C.S ZINC PLATED |
8 |
| 22 |
GEAR BOX |
C.S |
1 |
| 23 |
STOPPER |
C.S ZINC PLATED / S.S 304 |
1 |
| 24 |
ANTISTATIC DEVICE |
AISI 316 / 316L |
2 |
| 25 |
END CAP |
RUBBER |
2 |
|
| |
|
| |

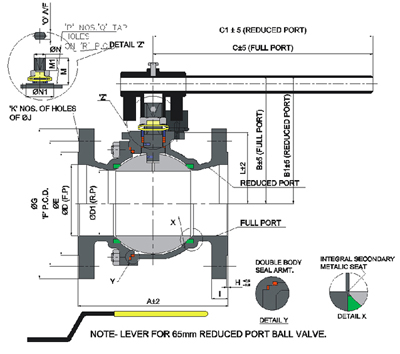

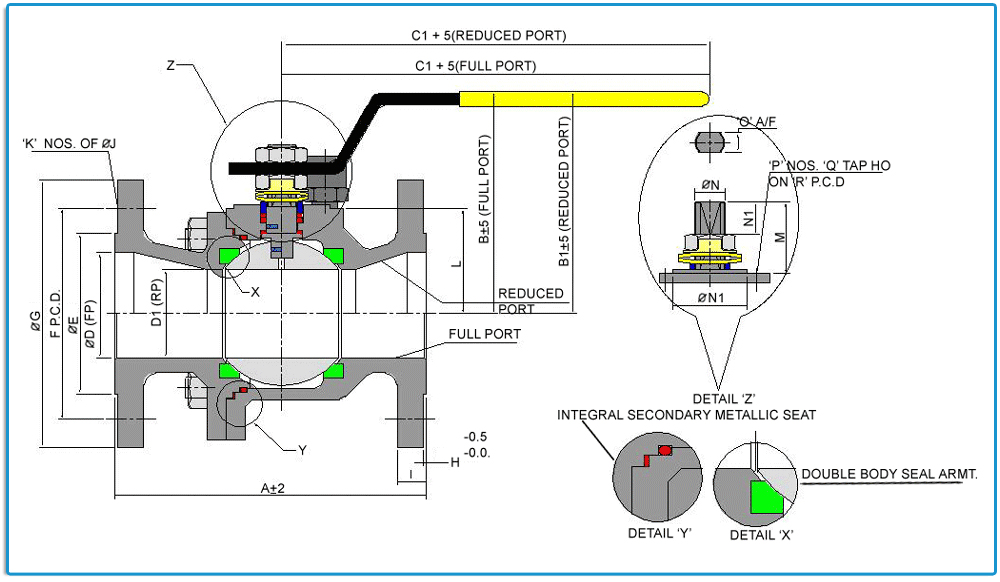

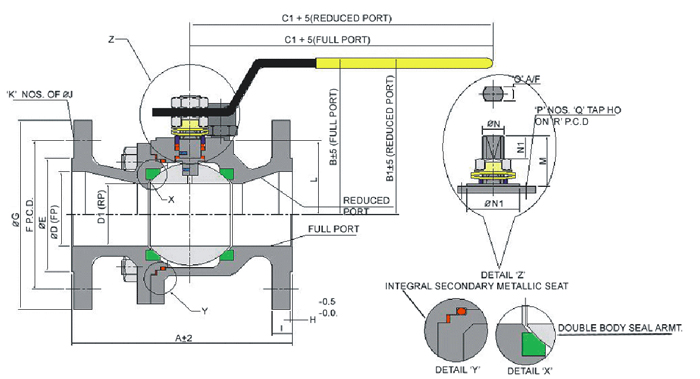

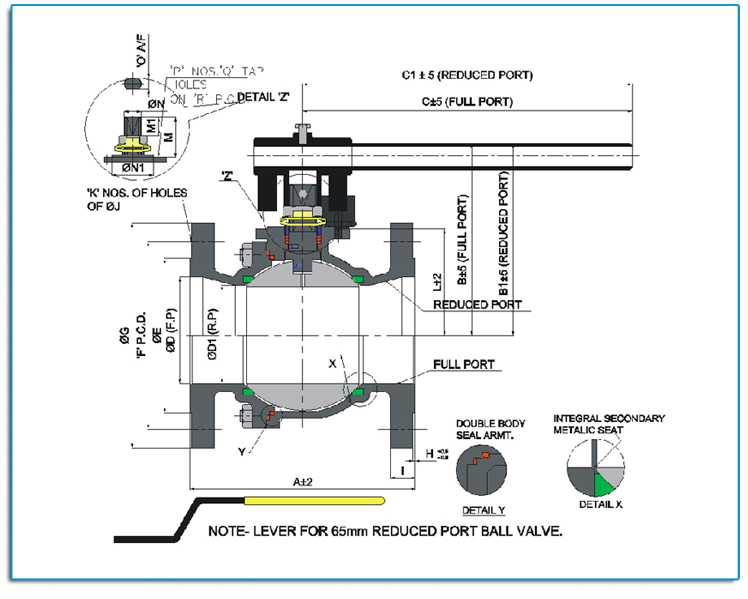

| Dimension View 15-50mm |
| |
 |
| |
|
| |
| #150 |
Valve
size |
A |
RB |
FB |
ØE |
F
PCD |
ØG |
H |
I |
J |
K |
L |
M |
M1 |
ØN |
ØN1 |
‘O’
A/F |
P |
Q |
R
PCD |
ISO
5211 |
| B1 |
C1 |
D1 |
B |
C |
ØD |
| 15 |
108 |
81 |
156 |
12.7 |
81 |
156 |
12.7 |
35 |
60.5 |
90 |
2 |
10 |
15.9 |
4 |
29.5 |
15 |
9.5 |
11.1 |
25 |
6.3 |
4 |
M5 |
36 |
F 03 |
| 20 |
117 |
81 |
156 |
12.7 |
85 |
156 |
19 |
42.8 |
70 |
100 |
2 |
10.9 |
15.9 |
4 |
33 |
16.5 |
7.5 |
11.1 |
30 |
6.3 |
4 |
M5 |
42 |
F 04 |
| 25 |
127 |
85 |
156 |
19 |
99 |
178 |
25.4 |
50.8 |
79.5 |
110 |
2 |
11.6 |
15.9 |
4 |
39.5 |
24.7 |
12 |
12.7 |
30 |
7.9 |
4 |
M5 |
42 |
F 02 |
| 32 |
140 |
99 |
178 |
25.4 |
103 |
178 |
31.7 |
63.5 |
89 |
115 |
2 |
13.2 |
15.9 |
4 |
45 |
25.9 |
15.3 |
12.7 |
35 |
7.9 |
4 |
M6 |
50 |
F 05 |
| 40 |
165 |
103 |
178 |
31.7 |
115 |
225 |
38.1 |
73 |
98.5 |
125 |
2 |
14.7 |
15.9 |
4 |
46 |
32.7 |
13.7 |
14.3 |
35 |
9.5 |
4 |
M6 |
50 |
F 05 |
| 50 |
178 |
115 |
225 |
38.1 |
124 |
245 |
50.8 |
92 |
120.5 |
150 |
2 |
16.3 |
19 |
4 |
60 |
34 |
17 |
17 |
55 |
11.1 |
4 |
M8 |
70 |
F 07 |
|
| |
ALL DIMENSIONS ARE IN MM |
| # 300 |
Valve
size |
A |
RB |
FB |
ØE |
F
PCD |
ØG |
H |
I |
J |
K |
L |
M |
M1 |
ØN |
ØN1 |
O |
P |
Q |
R
PCD |
ISO
5211 |
| B1 |
C1 |
D1 |
B |
C |
D |
| 15 |
140 |
81 |
156 |
12.7 |
81 |
156 |
13 |
35 |
66.5 |
95 |
2 |
14.7 |
15.9 |
4 |
29.5 |
15.5 |
9.5 |
11.1 |
25 |
6.3 |
4 |
M5 |
36 |
F 03 |
| 20 |
152 |
81 |
156 |
12.7 |
85 |
156 |
19 |
42.8 |
82.5 |
115 |
2 |
16.3 |
19 |
4 |
33 |
16 |
9.5 |
11.1 |
30 |
6.3 |
4 |
M5 |
42 |
F 04 |
| 25 |
165 |
85 |
156 |
19 |
101 |
178 |
25.4 |
50.8 |
89 |
125 |
2 |
17.9 |
19 |
4 |
39.5 |
24.7 |
12 |
12.7 |
30 |
7.9 |
4 |
M5 |
42 |
F 04 |
| 32 |
178 |
101 |
178 |
25.4 |
103 |
178 |
31.7 |
63.5 |
98.5 |
135 |
2 |
19.5 |
19 |
4 |
45 |
25.9 |
15.3 |
12.7 |
35 |
7.9 |
4 |
M6 |
50 |
F 05 |
| 40 |
190 |
103 |
178 |
31.7 |
116 |
225 |
38.1 |
73 |
114.5 |
155 |
2 |
21.1 |
22.2 |
4 |
46 |
32.7 |
14 |
14.3 |
35 |
9.5 |
4 |
M6 |
50 |
F 05 |
| 50 |
216 |
116 |
225 |
38.1 |
126 |
245 |
50.8 |
92 |
127 |
165 |
2 |
22.7 |
19 |
8 |
60 |
34 |
15.5 |
17 |
55 |
11.1 |
4 |
M8 |
70 |
F 07 |
|
| |
ALL DIMENSIONS ARE IN MM |
| # 600 |
Valve
size |
A |
RB |
FB |
ØE |
F
PCD |
ØG |
H |
I |
J |
K |
L |
M |
M1 |
ØN |
ØN1 |
O
A/F |
P |
Q |
R
PCD |
ISO
5211 |
| B1 |
C1 |
ØD1 |
B |
C |
ØD |
| 15 |
165 |
81 |
156 |
12.7 |
81 |
156 |
12.7 |
35 |
67 |
95 |
7 |
21.3 |
15.8 |
4 |
29.5 |
15.5 |
8.5 |
11.1 |
25 |
6.3 |
4 |
M5 |
36 |
F03 |
| 20 |
190 |
81 |
156 |
12.7 |
85 |
156 |
19 |
43 |
82.5 |
115 |
7 |
22.9 |
19 |
4 |
33 |
15 |
8.5 |
11.1 |
30 |
6.3 |
4 |
M5 |
42 |
F04 |
| 25 |
216 |
85 |
156 |
19 |
110 |
225 |
25.4 |
51 |
89 |
125 |
7 |
24.5 |
19 |
4 |
39.5 |
34.5 |
14 |
14.3 |
35 |
9.5 |
4 |
M6 |
50 |
F05 |
| 40 |
241 |
110 |
225 |
31.7 |
117 |
225 |
38.1 |
73 |
114.5 |
155 |
7 |
29.3 |
22.2 |
4 |
50 |
41.5 |
15.5 |
17 |
35 |
11.1 |
4 |
M6 |
50 |
F05 |
| 50 |
292 |
117 |
225 |
38.1 |
152 |
245 |
50.8 |
92 |
127 |
165 |
7 |
32.5 |
19 |
8 |
69 |
41.5 |
15.5 |
17 |
55 |
11.1 |
4 |
M8 |
70 |
F07 |
|
| |
ALL DIMENSIONS ARE IN MM |
|
| Dimension View 150-300mm-Gear Operated |
| |
 |
| |
|
| |
| #150 |
Valve
size |
A |
FP
B |
RP
B1 |
FP
C |
RP
C1 |
FP
ØD |
RP
D1 |
ØE |
F
PCD |
ØG |
H |
I |
J |
K |
L |
M |
M1 |
ØN |
ØN1 |
O
A/F |
P
|
Q |
R
PCD |
ISO
5211 |
| 65 |
190 |
132 |
115 |
269 |
225 |
63.5 |
50.8 |
105 |
140 |
178 |
2 |
17.5 |
19 |
4 |
75 |
32 |
15.5 |
17 |
55 |
11.1 |
4 |
M8 |
70 |
F 07 |
| 80 |
203 |
161 |
132 |
335 |
269 |
75 |
63.5 |
127 |
152.5 |
190.5 |
2 |
19 |
19 |
4 |
88.5 |
40 |
20.6 |
23.8 |
70 |
15.87 |
4 |
M10 |
102 |
F 10 |
| 100 |
229 |
195 |
161 |
335 |
335 |
98 |
75 |
157 |
190.5 |
229 |
2 |
23.9 |
19 |
8 |
108 |
45.5 |
21.2 |
28.6 |
70 |
19 |
4 |
M10 |
102 |
F 10 |
|
| |
ALL DIMENSIONS ARE IN MM |
| #300 |
Valve
size |
A |
FPB |
RP
B1 |
FP
C |
RP
C1 |
FP
ØD |
RP
D1 |
ØE |
F
PCD |
ØG |
H |
I |
J |
K |
L |
M |
M1 |
ØN |
ØN1 |
O
A/F |
P
|
Q |
R
PCD |
ISO
5211 |
| 65 |
241 |
132 |
116 |
269 |
225 |
63.5 |
50.8 |
105 |
149.5 |
191 |
2 |
25.9 |
22.2 |
8 |
75 |
32 |
15.5 |
17 |
55 |
11.1 |
4 |
M8 |
70 |
F 07 |
| 80 |
283 |
161 |
132 |
335 |
269 |
75 |
63.5 |
127 |
168.5 |
210 |
2 |
29 |
22.2 |
8 |
88.5 |
40 |
20.6 |
23.8 |
70 |
15.87 |
4 |
M10 |
102 |
F 10 |
| 100 |
305 |
195 |
161 |
335 |
335 |
98 |
75 |
157 |
200 |
254 |
2 |
32.2 |
22.2 |
8 |
108 |
45.5 |
21.2 |
28.6 |
70 |
19 |
4 |
M10 |
102 |
F 10 |
|
| |
ALL DIMENSIONS ARE IN MM |
| #600 |
Valve
size |
A |
FPB |
RP
B1 |
FP
C |
RP
C1 |
FP
ØD |
RP
D1 |
ØE |
F
PCD |
ØG |
H |
I |
J |
K |
L |
M |
M1 |
ØN |
ØN1 |
O
A/F |
P
|
Q |
R
PCD |
ISO
5211 |
| 80 |
356 |
178 |
132 |
335 |
269 |
75 |
63.5 |
127 |
168.3 |
210 |
7 |
39 |
22.2 |
8 |
90 |
46.5 |
21.5 |
28.6 |
70 |
19 |
4 |
M10 |
102 |
F 10 |
| 100 |
432 |
197 |
178 |
335 |
335 |
98 |
75 |
157 |
215.9 |
275 |
7 |
45.5 |
25.4 |
8 |
108 |
45.5 |
20.5 |
28.6 |
70 |
19 |
4 |
M10 |
102 |
F 10 |
|
| |
ALL DIMENSIONS ARE IN MM |
|
| |
Product
