Wafer Type Ball valve

Model :
BL-W-F-W-A1
Size :
40-150mm
Bore :
Full bore
Seat :
PTFE/RPTFE
Ratings :
150 Class
Ends :
Wafer to suit ANSI & BS Flanges

 Click Here for a downloadable and / or printable version of this page.
Exploded View-15-25mm | Dimension View 40-50MM (customer scope)

40-50MM | 65-150MM

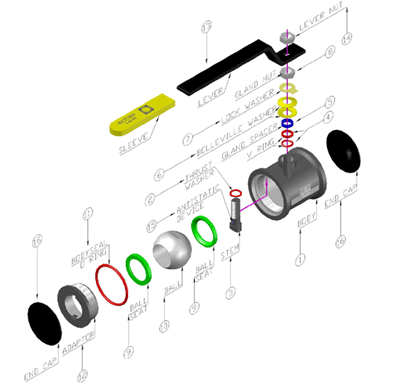

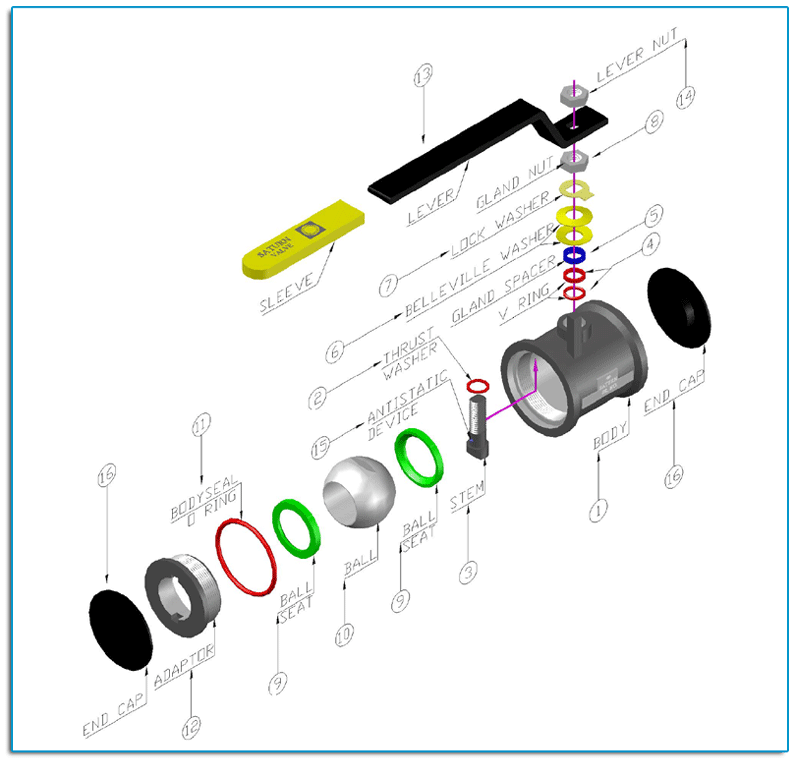

 Exploded View

mevada


No. Description Material Qty
1
BODY
LCB / WCB / CF8 / CF8M / CF3 / CF3M
 1
2
THRUST WASHER
PTFE / GFT / CFT
 1
3
STEM
AISI 304 / 304L / 316 / 316L
 1
4
GLAND SEAL RING
PTFE / GET / CFT / GRAPHITE
 1 SET
5
GLAND SPACER
AISI 316 / 316L
 1
6
BELLEVILLE WASHER
SPRING STEEL ZINC PLATED / S.S 304
 2
7
LOCK WASHER
C.S ZINC PLATED / S.S 304
 1
8
GLAND NUT
C.S ZINC PLATED / S.S 304 / S.S316
 1
9
BALL SEAT
PTFE / GFT / CFT / SP. R PTFE
2
10
BALL
CF8 / CF3 / CF8M / CF3M
 1
11
BODY SEAL
PTFE / GFT / CFT 0 RING / GRAPHITE
 1
12
ADAPTOR
LCB / WCB / CF8 / CF8M / CF3 / CF3M
 1
13
LEVER WITH PVC SLEEVE
C.S P.C / CF8
1
14
LEVER NUT
C.S ZINC PLATED / S.S 304
 1
15
ANTISTATIC DEVICE
AISI 316 / 316L
 1/2
16
END CAP
RUBBER
 1

  1

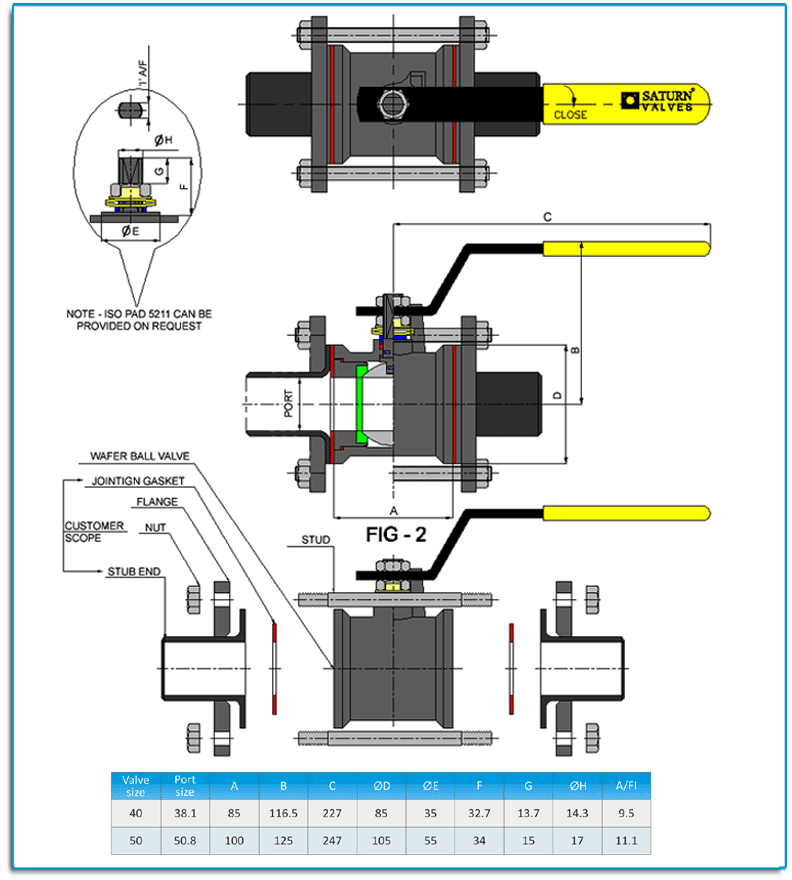

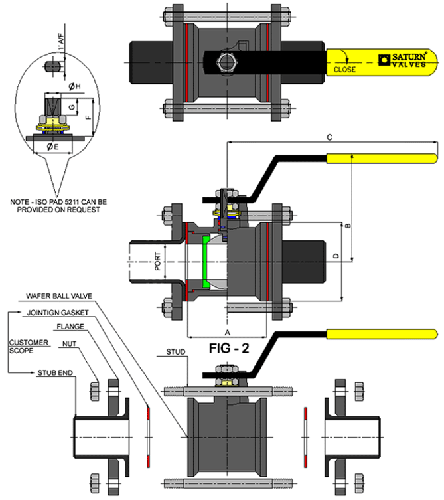

 Dimension View 40-50MM (customer scope)



Valve
size		 Port
size		 A B C

ØD

ØE

 F G ØH A/FI
40 38.1 85 116.5 227 85 35 32.7 13.7 14.3 9.5
50 50.8 100 125 247 105 55 34 15 17 11.1
          ALL DIMENSIONS ARE IN MM

  1

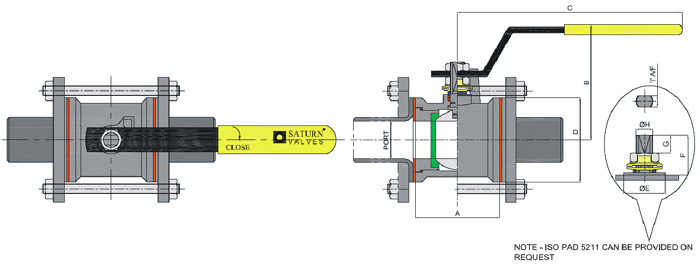

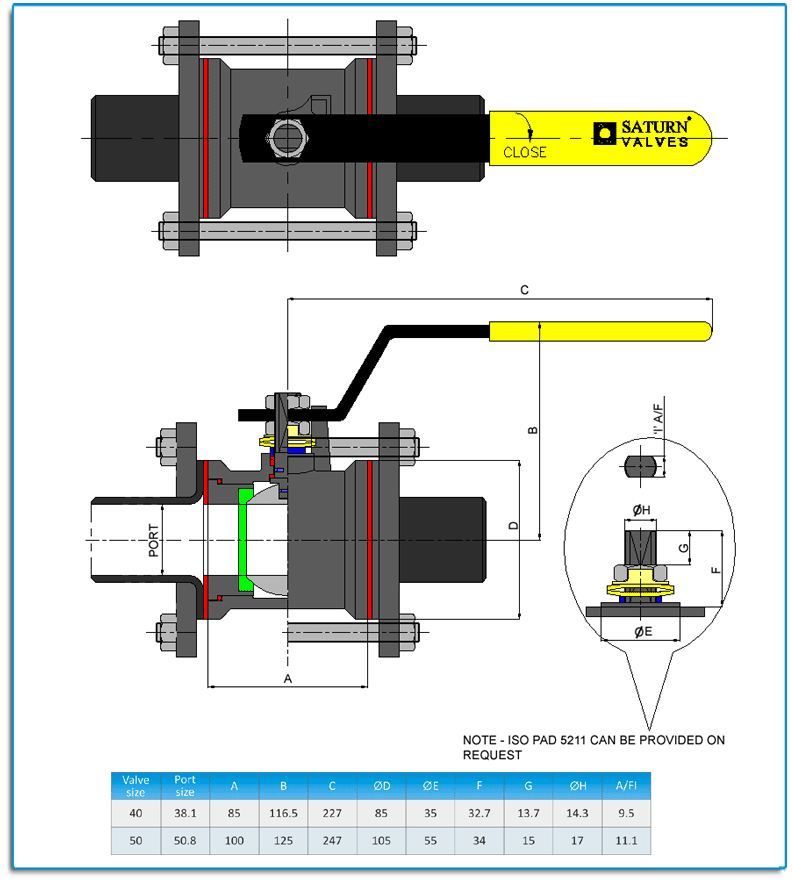

 Dimension View 40-50MM



Valve
size		 Port
size		 A B C

ØD

ØE

 F G ØH A/FI
40 38.1 85 116.5 227 85 35 32.7 13.7 14.3 9.5
50 50.8 100 125 247 105 55 34 15 17 11.1
         ALL DIMENSIONS ARE IN MM

  1

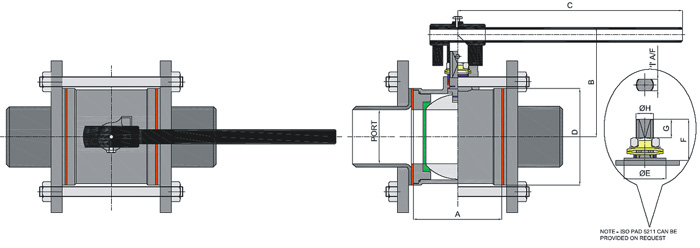

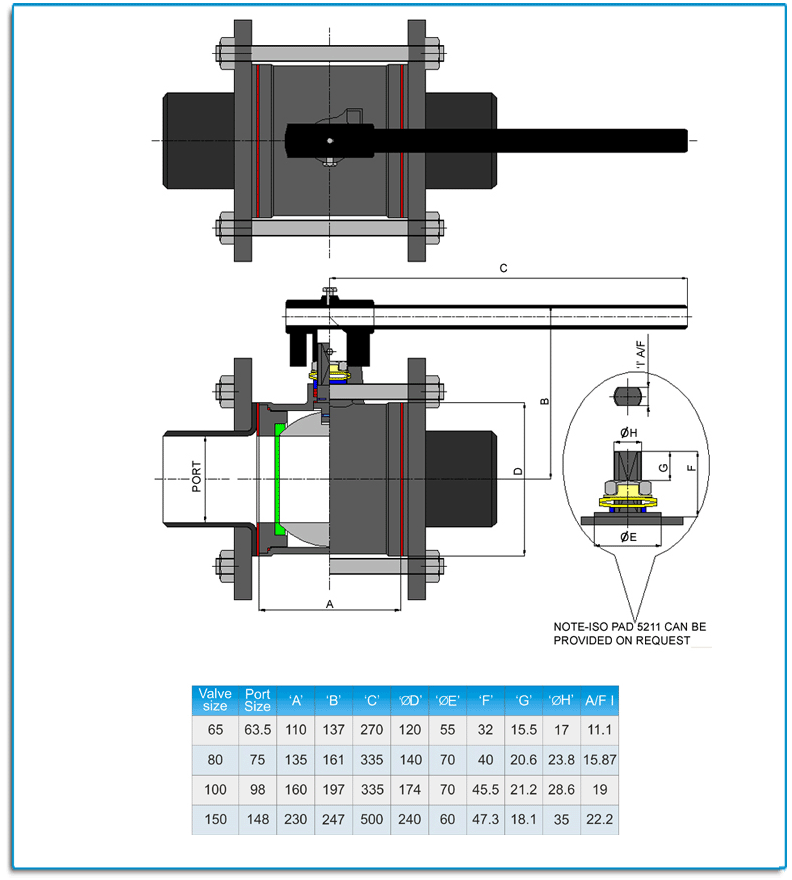

 Dimension View 65-150MM



Valve
size		 Port
size		 'A' 'B' 'C'

'ØD'

'ØE'

 'F' 'G' 'ØH' A/FI
65 63.5 110 137 270 120 55 32 15.5 17 11.1
80 75 135 161 335 140 70 40 20.6 23.8 15.87
100 98 160 197 335 174 70 45.5 21.2 28.6 19
150 148 230 247 500 240 60 47.3 18.1 35 22.2
         ALL DIMENSIONS ARE IN MM
