Trunion Mounted Ball Valve

Model :

Regular Bore
TMBV-2-R-F-A1 (150#)
TMBV-2-R-F-A2 (300#)

Full Bore
TMBV-2-F-F-A1 (150#)
TMBV-2-F-F-A2 (300#)

Size :
50-300mm
Bore :
Regular / Full bore
Material :
Carbon Steel, Low carbon steel, Stainless Steel and Alloy Steel
Seat :
PTFE / RPTFE / PEEK
Ratings :
150 / 300 / 600 Class
Ends :
Flanged
 API 6D Certified

 Click Here for a downloadable and / or printable version of this page.
  Design Features | Standards | Option | Exploded View | Dimension View

Design Features Standards
Full or Reduce Bore
Design : ASME B 16.34, BS EN ISO 17292 & API 6D
Piggable Bore
Pressure Test : API 598 / BS EN ISO 12266-1 / API 6D
Renewable Seat & Seals
Face to Face : ASME B 16.10 /API 6D
Double Body seals
Flange Dimension. : ANSI B 16.5
Triple Stem Seals
Mounting Pad : DIN 3337/ ISO 5211
ISO Mounting pad to suit actuator gear box and other hardware mountings
Material Certifications. : DIN 50.049-3 1B
High cycle stem packing system provides extra longer service life
Nace : MR 01-75 complaint
Maintenance free live loaded double sealing
Quality Systems / Certifications : ISO 9001:2008, API 6D
High cycle stem packing system provides extra longer service life
Anti-Static Device
Option
Blowout proof Stem
Double Block and Bleed
Firesafe to API 607 Std.
Cavity Relief
Emergency Sealant Injection on Stem
Vent and Drain
Emergency Sealant Injection on Seats
Extended Stem for Underground Installation
Locking Device
Vented ball to reduce damage caused by trapped cavity pressure.

  1

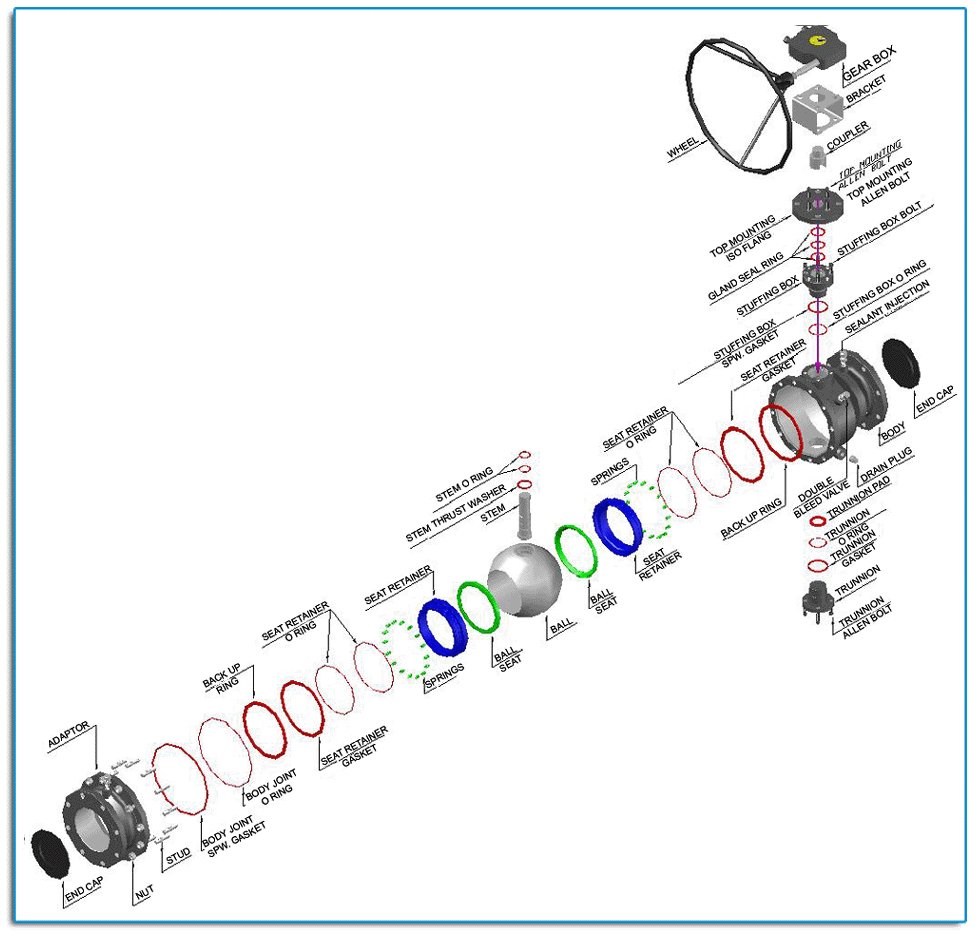

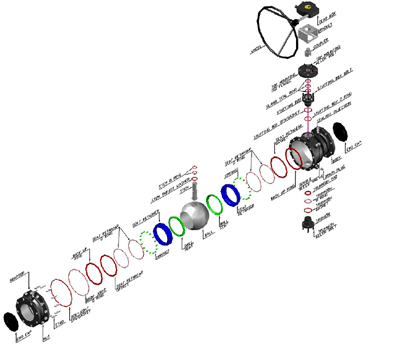

 Exploded View

mevada


No. Description Material Qty
1
BODY
LCB / WCB / CF8 / CF8M / CF3 / CF3M
 1
2
SEAT RETAINER
CF8 / CF8M / CF3 / CF3M
 2
3
SEAT RETAINER ‘O’ RING
VITON RUBBER
 4
4
SEAT RETAINER GASKET
GRAPHITE
 2
5
BACK UP RING
CF8 / CF8M / CF3 / CF3M
 2
6
BALL SEAT
PTFE / GFT / CFT / PEEK
 2
7
SPRINGS
INCONEL X 750
 As required
8
BALL
CF8 / CF8M / CF3 / CF3M
 1
9
ADAPTOR
LCB / WCB / CF8 / CF8M / CF3 / CF3M
 1
10
BODY JOINT STUD & NUT
A 193 GR.B7 & A194 GR.2H
A 193 GR. B8 / A 270,
A 320 L7 & B8
 As required
11
STEM
AISI304 / 304L / 316 / 316L
 1
12
STEM THRUST WASHER
GFT / CFT / PEEK
 1
13
STEM  ‘O’ RING
VITON RUBBER
 2
14
STUFFING BOX ‘O’   RING
GFT / CFT / PEEK
 1
15
STUFFING BOX GASKET
SPW. 304 / 316 WITH GRAPHITE
 1
16
STUFFING  BOX
LCB / WCB / CF8 / CF8M / CF3 / CF3M
 1
17
STUFFING BOX BOLT
HIGH TENSILE ALLEN CAP BOLT
 4
18
TRUNNION   PAD
GFT / CFT / PEEK
 1
19
TRUNNION ‘O’ RING
VITON RUBBER
 1
20
TRUNNION GASKET
SPW. 304 / 316 WITH GRAPHITE
 1
21
TRUNNION
LCB / WCB / CF8 / CF8M / CF3 / CF3M
 1
22
TRUNNION  BOLT
HIGH TENSILE ALLEN CAP BOLT
 4
23
GLAND SEAL RING
GRAPHITE
 3
24
TOP MOUNTING ISO FLANG
C.S / CF8 / CF3 / CF8M / CF3M
 1
25
TOP MOUNTING BOLT
HIGH TENSILE ALLEN CAP BOLT
 4
26
SEALANT INJECTION
S.S 304 / 304L / 316 / 316L
 2
27
DRAIN PLUG
A105 / A182F 304 / 304L / 316 / 316L
 1
28
DOUBLE BLEED VALVE
S.S 304 / 304L / 316 / 316L
 1
29
END CAP
RUBBER
 2
30
COUPLER
S.S 304
 1
31
BRACKET
C.S
 1
32
GEAR BOX
C.S
 1

  1

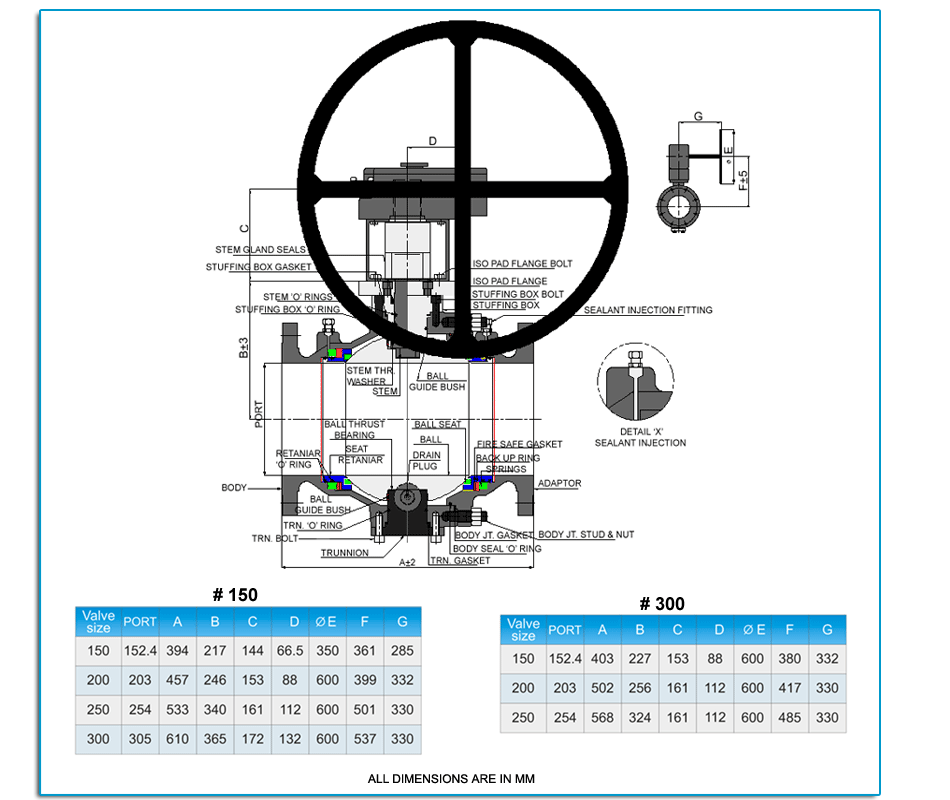

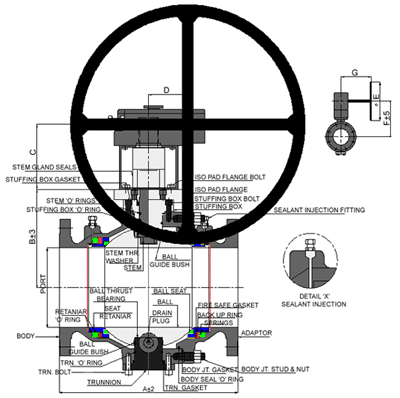

 Dimension View


# 150 # 300
Valve Size PORT A B C D ØE F G
150 152.4 394 217 144 66.5 350 361 285
200 203 457 246 153 88 600 399 332
250 254 533 340 161 112 600 501 330
300 305 610 365 172 132 600 537 330
Valve Size PORT A B C D ØE F G
150 152.4 403 227 153 88 600 380 332
200 203 502 256 161 112 600 417 330
250 254 568 324 161 112 600 485 330
ALL DIMENSIONS ARE IN MM
