Split Body, Side Entry Flange End Ball Valve
|
|
Model : |
BL-1-R-F-A1 (150#) |
BL-1-R-F-A2 (300#) |
|
Size : |
15-150mm |
Bore : |
Regular Bore |
Material : |
Carbon Steel, Stainless Steel and Alloy Steel |
Seat : |
PTFE/ RPTFE / DEVLON / PEEK |
Ratings : |
150 / 300 Class
|
Ends : |
Flanged |
|
|
|
Click Here for a downloadable and / or printable version of this page. |
Design Features | Standards | Option | Exploded View | Dimension View-25-50mm | 65-100mm |
|
|
Design Features |
Standards |
Design suitable for eliminating external are highly critical media is expensive, toxic and external joint leakage is not acceptable. |
Design : ASME B 16.34, BS EN ISO 17292 |
Self adjustable gland packing |
Pressure Test : API 598 / BS EN ISO 12266-1 |
ISO Mounting pad to suit actuator gear box and other hardware mountings |
Face to Face : ASME B 16.10 |
Maintenance free live loaded double sealing in gland |
Flange Dimension : ANSI B 16.5 |
Maintenance free live loaded double sealing |
Mounting Pad : DIN 3337/ ISO 5211 |
High cycle stem packing system provides extra longer service life |
Material Certifications : DIN 50.049-3 1B |
Anti-Static Device |
Nace MR 01-75 compliance |
Blowout proof Stem |
Quality Systems / Certifications : ISO 9001:2008, API 6D |
Renewable Seat & Seals |
|
'O" ring style body seals for better joint sealing & reusable |
|
|
|
Option |
- Extended stem & pad lock capabilities provide maximum safety.
- Vented ball to reduce damage caused by trapped cavity pressure.
- Cavity free seals are available to reduce the possible entrapment of line media fluids between the ball and the shell.
|
|
|
|

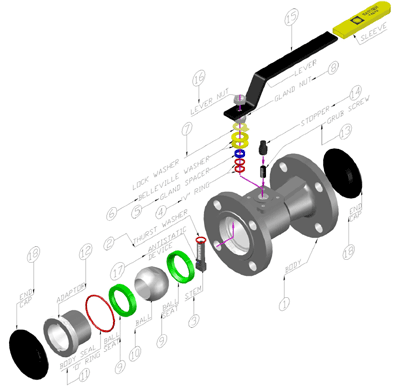

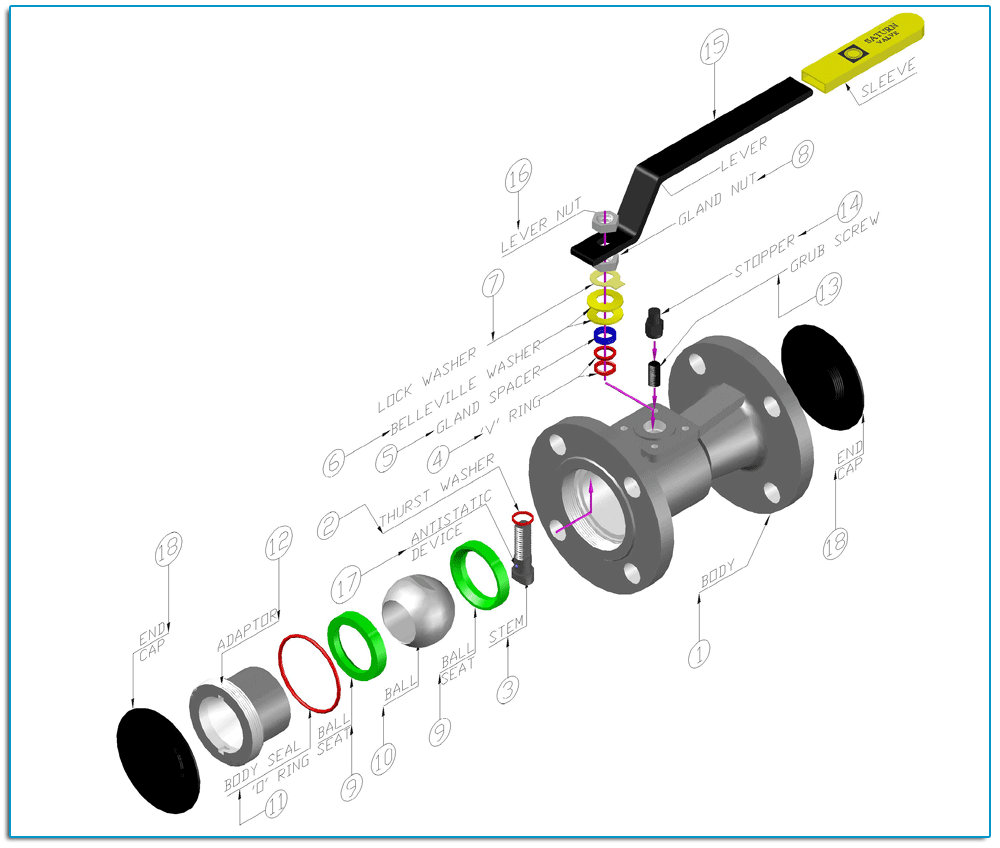

Exploded View |
|
|
|
|
|
No. |
Description |
Material |
Qty |
1 |
BODY |
LCB / WCB / CF8 / CF8M / CF3 / CF3M/CDM/CN7M/HAST-C/SS904L |
1 |
2 |
THRUST WASHER |
PTFE / GET / CFT |
1 |
3 |
STEM |
AISI 304 / 304L / 316 / 316L / CDM / CN7M / HAST-C / SS904L / MONEL 400 |
1 |
4 |
GLAND SEAL RING |
PTFE / GET / CFT / GRAPHITE |
1 SET |
5 |
GLAND SPACER |
AISI 316 / 316L |
1 |
6 |
BELLEVILLE WASHER |
SPRING STEEL ZINC PLATED / S.S 304 |
2 |
7 |
LOCK WASHER |
C.S ZINC PLATED / S.S 304 |
1 |
8 |
GLAND NUT |
C.S ZINC PLATED / S.S 304 / 316 |
1 |
9 |
BALL SEAT |
PTFE / GFT/CFT / DEVLON / PEEK |
2 |
10 |
BALL |
CF8 / CF8M / CF3 / CF3M/CDM/CN7M/HAST-C/SS904L/M-35 |
1 |
11 |
BODY JOINT RING |
“O” STYLE PTFE / GFT / CFT / FLAT STYLE GRAPHITE |
1 |
12 |
ADAPTOR |
LCB / WCB / CF8 / CF8M / CF3 / CF3M |
2 |
13 |
GRUB SCREW |
HIGH TENSILE |
2 |
14 |
STOPPER |
C.S ZINC PLATED / S.S 304 |
2 |
15 |
LEVER WITH PVC SLEEVE |
C.S P.C / CF8 |
1 |
16 |
LEVER NUT |
C.S ZINC PLATED / S.S 304 |
1 |
17 |
ANTISTATIC DEVICE |
AISI 316 / 316L |
1/2 |
18 |
END CAP |
RUBBER |
2 |
|
|
|
|

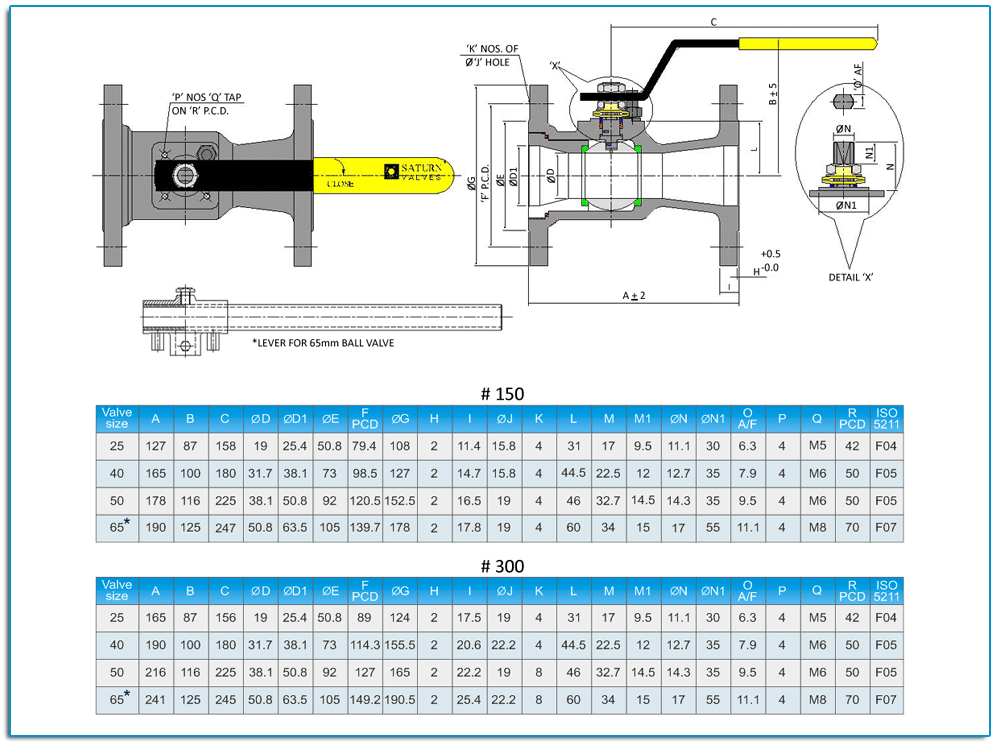

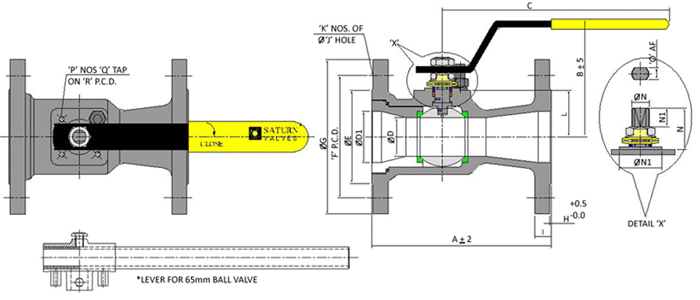

Dimension View 25-50mm |
|
|
|
|
|
# 150 |
Valve
size |
A |
B |
C |
ØD |
ØD1 |
ØE |
F
PCD |
ØG |
H |
I |
ØJ |
K |
L |
M |
M1 |
ØN |
ØN1 |
O
A/F |
P |
Q |
R
PCD |
ISO
5211 |
25 |
127 |
87 |
158 |
19 |
25.4 |
50.8 |
79.4 |
108 |
2 |
11.4 |
15.8 |
4 |
31 |
17 |
9.5 |
11.1 |
30 |
6.3 |
4 |
M5 |
42 |
F 04 |
40 |
165 |
100 |
180 |
31.7 |
38.1 |
73 |
98.5 |
127 |
2 |
14.7 |
15.8 |
4 |
44.5 |
22.5 |
12 |
12.7 |
35 |
7.9 |
4 |
M6 |
50 |
F 05 |
50 |
178 |
116 |
225 |
38.1 |
50.8 |
92 |
120.5 |
152.5 |
2 |
16.5 |
19 |
4 |
46 |
32.7 |
14.5 |
14.3 |
35 |
9.5 |
4 |
M6 |
50 |
F 05 |
65* |
190 |
125 |
247 |
50.8 |
63.5 |
105 |
139.7 |
178 |
2 |
17.8 |
19 |
4 |
60 |
34 |
15 |
17 |
55 |
11.1 |
4 |
M8 |
70 |
F 07 |
|
|
ALL DIMENSIONS ARE IN MM |
#300 |
Valve
size |
A |
B |
C |
ØD |
ØD1 |
ØE |
F
PCD |
ØG |
H |
I |
ØJ |
K |
L |
M |
M1 |
ØN |
ØN1 |
O
A/F |
P |
Q |
R
PCD |
ISO
5211 |
25 |
165 |
87 |
156 |
19 |
25.4 |
50.8 |
89 |
124 |
2 |
17.5 |
19 |
4 |
31 |
17 |
9.5 |
11.1 |
30 |
6.3 |
4 |
M5 |
42 |
F 04 |
40 |
190 |
100 |
180 |
31.7 |
38.1 |
73 |
114.3 |
155.5 |
2 |
20.6 |
22.2 |
4 |
44.5 |
22.5 |
12 |
12.7 |
35 |
7.9 |
4 |
M6 |
50 |
F 05 |
50 |
216 |
116 |
225 |
38.1 |
50.8 |
92 |
127 |
165 |
2 |
22.2 |
19 |
8 |
46 |
32.7 |
14.5 |
14.3 |
35 |
9.5 |
4 |
M6 |
50 |
F 05 |
65* |
241 |
125 |
245 |
50.8 |
63.5 |
105 |
149.2 |
190.5 |
2 |
25.4 |
22.2 |
8 |
60 |
34 |
15 |
17 |
55 |
11.1 |
4 |
M8 |
70 |
F 07 |
|
|
ALL DIMENSIONS ARE IN MM |
|
|
|
|
|

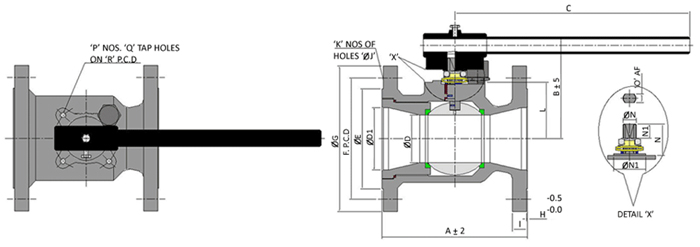

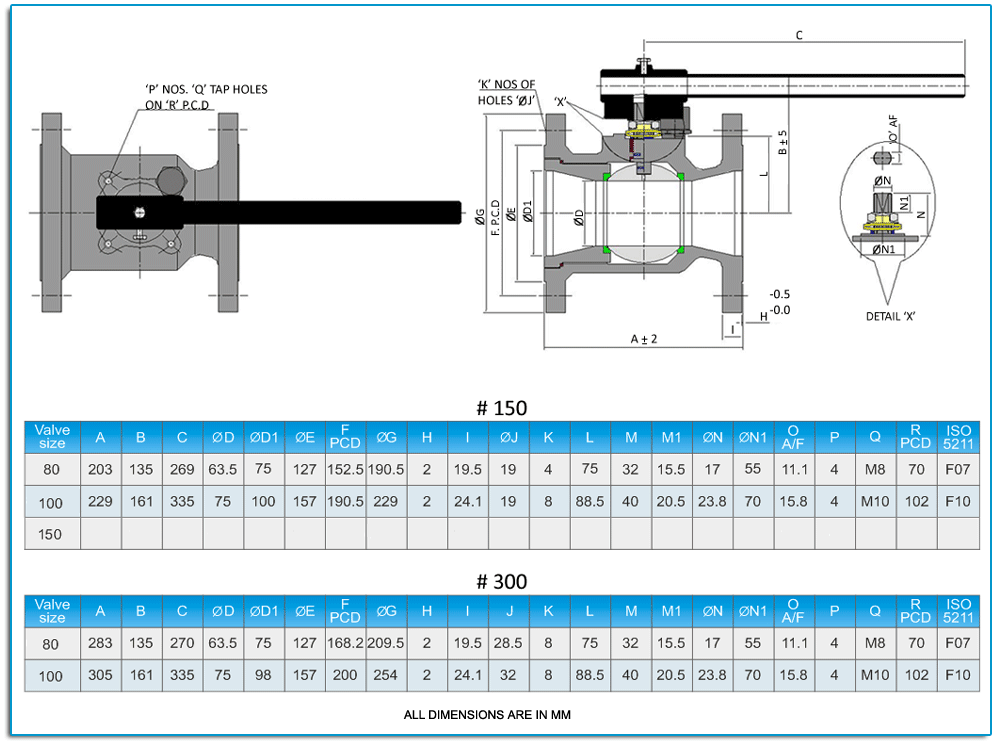

Dimension View 65-100mm |
|
|
|
|
|
#150 |
Valve
size |
A |
B |
C |
ØD |
ØD1 |
ØE |
F
PCD |
ØG |
H |
I |
ØJ |
K |
L |
M |
M1 |
ØN |
ØN1 |
O
A/F |
P |
Q |
R
PCD |
ISO
5211 |
80 |
203 |
135 |
269 |
63.5 |
75 |
127 |
152.5 |
190.5 |
2 |
19.5 |
19 |
4 |
75 |
32 |
15.5 |
17 |
55 |
11.1 |
4 |
M8 |
70 |
F 07 |
100 |
229 |
161 |
335 |
75 |
100 |
157 |
190.5 |
229 |
2 |
24.1 |
19 |
8 |
88.5 |
40 |
20.5 |
23.8 |
70 |
15.8 |
4 |
M10 |
102 |
F 10 |
150 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ALL DIMENSIONS ARE IN MM |
#300 |
Valve
size |
A |
B |
C |
ØD |
ØD1 |
ØE |
F
PCD |
ØG |
H |
I |
J |
K |
L |
M |
M1 |
ØN |
ØN1 |
O
A/F |
P |
Q |
R
PCD |
ISO
5211 |
80 |
283 |
135 |
270 |
63.5 |
75 |
127 |
168.2 |
209.5 |
2 |
19.5 |
28.5 |
8 |
75 |
32 |
15.5 |
17 |
55 |
11.1 |
4 |
M8 |
70 |
F 07 |
100 |
305 |
161 |
335 |
75 |
98 |
157 |
200 |
254 |
2 |
24.1 |
32 |
8 |
88.5 |
40 |
20.5 |
23.8 |
70 |
15.8 |
4 |
M10 |
102 |
F 10 |
|
|
ALL DIMENSIONS ARE IN MM |
|
|
|
|
