Self adjustable gland packing

Extended stem & pad lock capabilities provide maximum safety.

Renewable Seat & Seals

Vented ball to reduce damage caused by trapped cavity pressure.

Maintenance free live loaded double sealing

Cavity free seals are available to reduce the possible entrapment of line media fluids between the ball and the shell.

High cycle stem packing system provides extra longer service life

Flange welded nozzles of 15NB and 20NB also available in place of screwed nozzles.

Anti-Static Device

Blowout proof Stem

Design : ASME B 16.34, BS EN ISO 17292

'O' ring style body seals for better joint sealing & resuable.

Pressure Test : API 598, BS EN ISO 12266-1

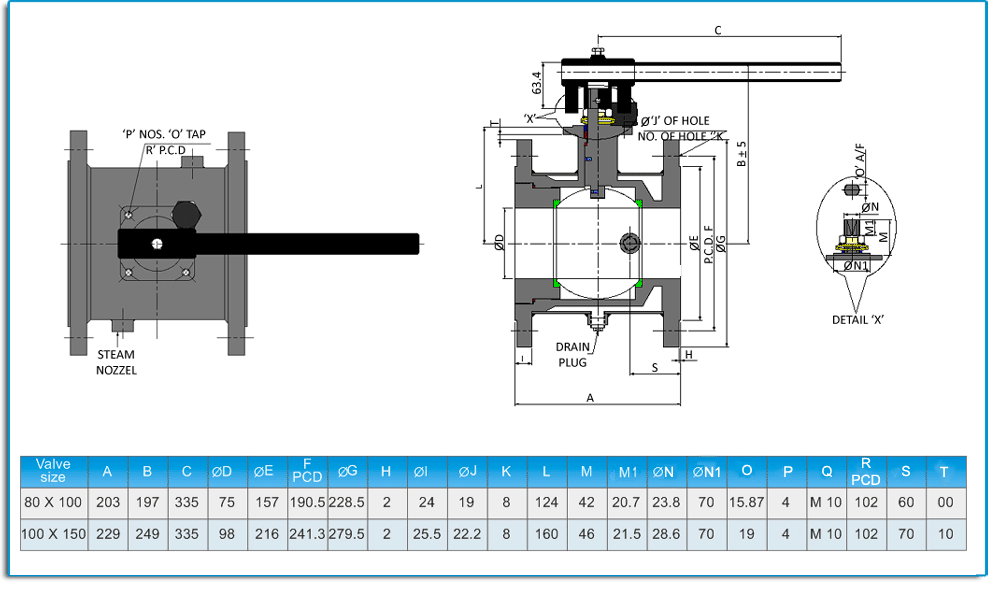

Flange Dimension. : ANSI B 16.5

Steam / Hot Oil is circulated to maintain the temperature of fluid and to prevent Solidification

Quality Systems / Certifications : ISO 9001:2000

WCB / CF8 / CF8M / CF3 / CF3M

PTFE / GFT / CFT / CERAMIC FILLED

AISI 304 / 304L / 316 / 316L

GFT / CFT / GRAPHITE / CERAMIC FILLED

AISI 316 / 316L

SPRING STEEL ZINC PLATED / S.S 304

C.S ZINC PLATED / S.S 304

C.S ZINC PLATED / S.S 304 / S.S316

GFT / CFT / SPL.RPTFE/ CERAMIC FILLED

CF8 / CF3 / CF8M / CF3 / CF3M

“O” style PTFE / GFT / CFT & Flat Style GRAPHITE

WCB / CF8 / CF8M / CF3 / CF3M

C.S P.C / CF8

C.S ZINC PLATED / S.S 304

AISI 316 / 316L

C.S / S.S 304

AISI 304
