Three Piece Design, Side Entry, Flange End Ball Valve
 |
| |
| Model : |
|
|
| |
Size : |
15-150mm |
Bore : |
Regular Bore / Full bore |
Material : |
Carbon Steel, Stainless Steel and Alloy Steel |
Seat : |
PTFE / RPTFE |
Ratings : |
150 Class |
Ends : |
Flanged |
|
 |
|
 Click Here for a downloadable and / or printable version of this page. |
| Design Features | Standards | Option | Exploded View | Dimension View-15-50mm | 65-100mm |
| |
|
| Design Features |
Standards |
Full or Reduce Bore |
Design : ASME B 16.34, BS EN ISO 17292 |
Self adjustable gland packing |
Pressure Test : API 598 / BS EN ISO 12266-1 |
Renewable Seat & Seals |
End to end : Manufacturer standards |
ISO Mounting pad to suit actuator gear box and other hardware mountings |
Ends Dimension : 1) Flange meets ANSI B 16.10 |
Maintenance free live loaded double sealing |
Mounting Pad : DIN 3337/ ISO 5211 |
High cycle stem packing system provides extra longer service life |
Material Certifications : DIN 50.049-3 1B |
Anti-Static Device |
Quality Systems / Certifications : ISO 9001:2008 |
Blowout proof Stem |
|
Centering Lugs for easy allignment |
|
'‘O' ring style body seals for better joint sealing & reusable |
|
|
| |
| Option |
- Extended 100mm long pre-welded pipes in SW valve to avoid destortion of ball seats
- Extended stem & pad lock capabilities provide maximum safety.
- Vented ball to reduce damage caused by trapped cavity pressure.
- Cavity free seals are available to reduce the possible entrapment of line media fluids between the ball and the shell.
|
| |
 |
| |

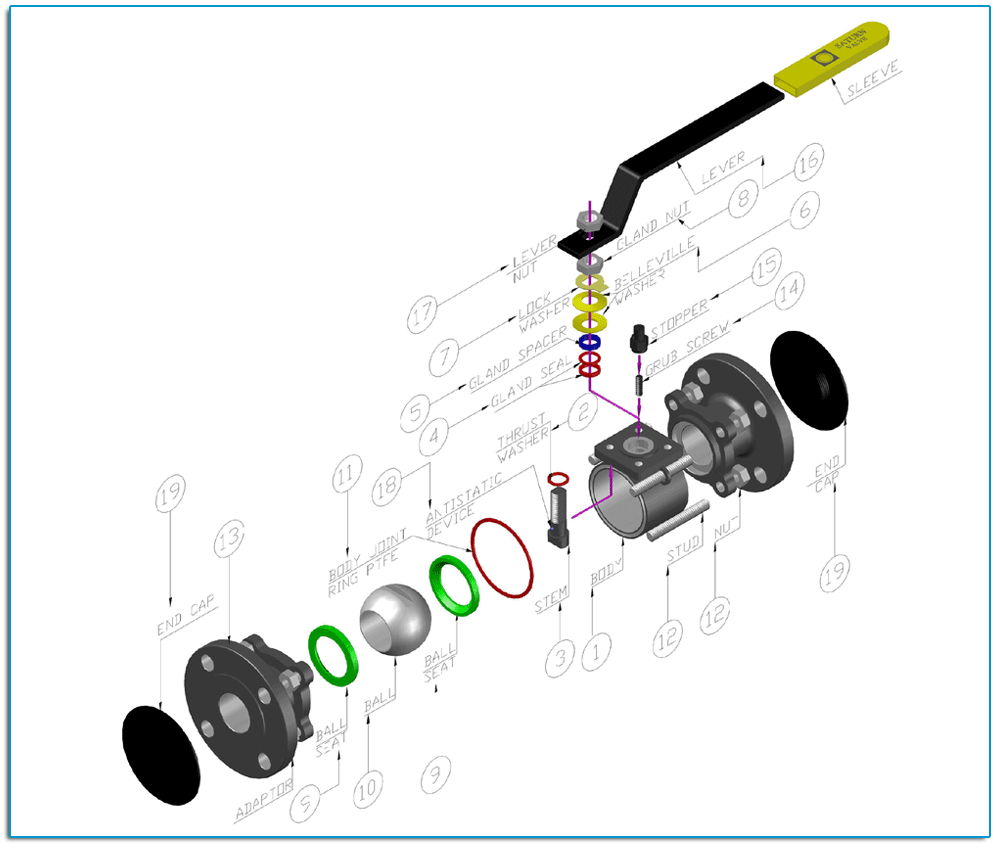

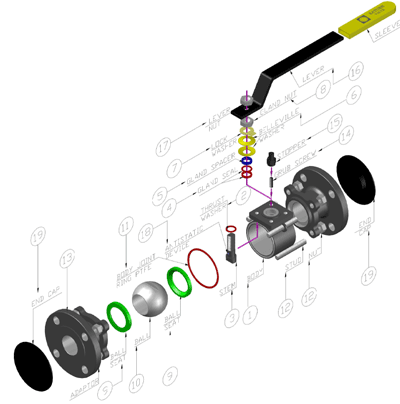

| Exploded View |
| |
| |
|
|
| |
| No. |
Description |
Material |
Qty |
| 1 |
BODY |
A105 / LCB / ADD A 105 WCB / CF8 / CF8M / CF3 / CF3M / CDM / CN7M / HAST-C / SS904L |
1 |
| 2 |
THRUST WASHER |
PTFE / GFT / CFT |
1 |
| 3 |
STEM |
AISI 304 / 304L / 316 / 316L / CDM / CN7M / HAST-C / SS904L / MONEL 400 |
1 |
| 4 |
GLAND SEAL RING |
PTFE / GET / CFT |
1 SET |
| 5 |
GLAND SPACER |
AISI 316 / 316L |
1 |
| 6 |
BELLEVILLE WASHER |
SPRING STEEL ZINC PLATED / S.S 304 |
2 |
| 7 |
LOCK WASHER |
C.S ZINC PLATED / S.S 304 |
1 |
| 8 |
GLAND NUT |
C.S ZINC PLATED / S.S 304 / S.S 316 |
1 |
| 9 |
BALL SEAT |
PTFE / GFT / CFT / SP. GRAPHITE |
2 |
| 10 |
BALL |
“O” style PTFE / GFT / CFT |
1 |
| 11 |
BODY JOINT RING |
PTFE / GFT / CFT |
1 |
| 12 |
STUD & NUT |
A 193 B7 / 2H / B8 / 270 / B8M / 8M |
4/6 |
| 13 |
ADAPTOR |
A 193 GR.B7 & A194 GR.2H,
A 193 GR. B8 & A 194 GR.8,
A 193 GR. B8M & A 194 GR.8M |
2 |
| 14 |
GRUB SCREW |
HIGH TENSILE |
1 |
| 15 |
STOPPER |
C.S ZINC PLATED / S.S 304 |
1 |
| 16 |
LEVER WITH PVC SLEEVE |
C.S P.C / CF8 |
1 |
| 17 |
LEVER NUT |
C.S ZINC PLATED / S.S 304 |
1 |
| 18 |
ANTISTATIC DEVICE |
AISI 316 / 316L |
1/2 |
| 19 |
END CAP |
RUBBER |
2 |
|
| |
|
| |
|
| |

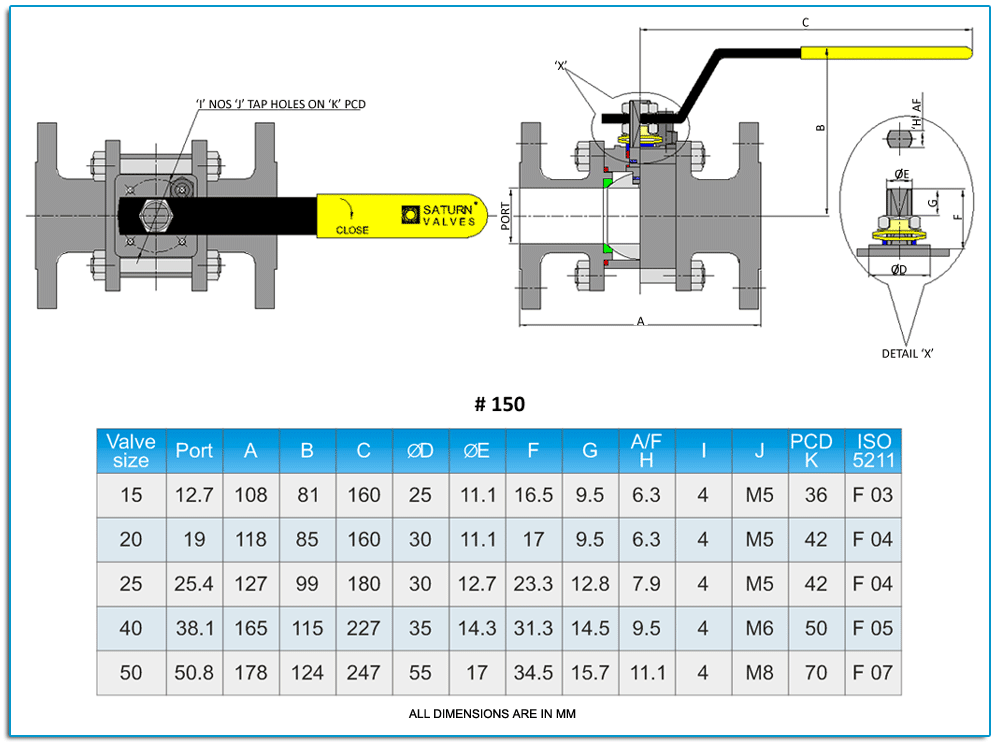

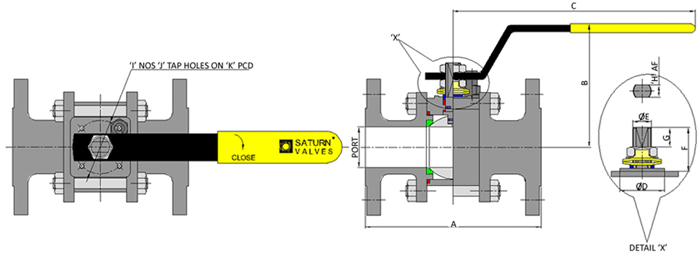

| Dimension View 15-50mm |
| |
 |
| |
|
| |
| #150 |
Valve
size |
Port |
A |
B |
C |
ØD |
ØE |
F |
G |
A/F
H |
I |
J |
PCD
K |
ISO
5211 |
| 15 |
12.7 |
108 |
81 |
160 |
25 |
11.1 |
16.5 |
9.5 |
6.3 |
4 |
M5 |
36 |
F 03 |
| 20 |
19 |
118 |
85 |
160 |
30 |
11.1 |
17 |
9.5 |
6.3 |
4 |
M5 |
42 |
F 04 |
| 25 |
25.4 |
127 |
99 |
180 |
30 |
12.7 |
23.3 |
12.8 |
7.9 |
4 |
M5 |
42 |
F 04 |
| 40 |
38.1 |
165 |
115 |
227 |
35 |
14.3 |
31.3 |
14.5 |
9.5 |
4 |
M6 |
50 |
F 05 |
| 50 |
50.8 |
178 |
124 |
247 |
55 |
17 |
34.5 |
15.7 |
11.1 |
4 |
M8 |
70 |
F 07 |
|
| |
ALL DIMENSIONS ARE IN MM |
| |

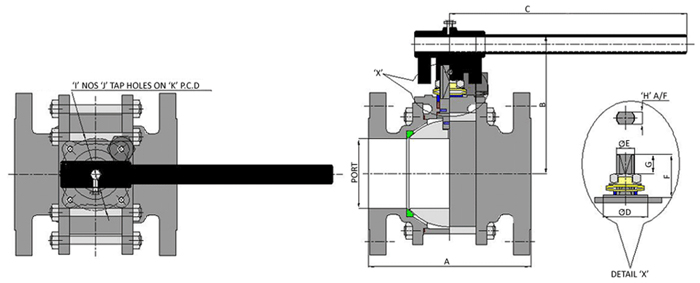

| Dimension View 65-100mm |
| |
 |
| |
|
| |
| #150 |
Valve
size |
Port |
A |
B |
C |
ØD |
ØE |
F |
G |
A/F
H |
I |
J |
PCD
K |
ISO
5211 |
| 65 |
63.5 |
190 |
135 |
270 |
55 |
17 |
32 |
15.5 |
11.1 |
4 |
M8 |
70 |
F 07 |
| 80 |
75 |
203 |
161 |
335 |
70 |
23.8 |
38.7 |
19.2 |
15.87 |
4 |
M10 |
102 |
F 10 |
| 100 |
98 |
229 |
195 |
335 |
70 |
28.6 |
45.5 |
21.2 |
19 |
4 |
M10 |
102 |
F 10 |
|
|
|
|
